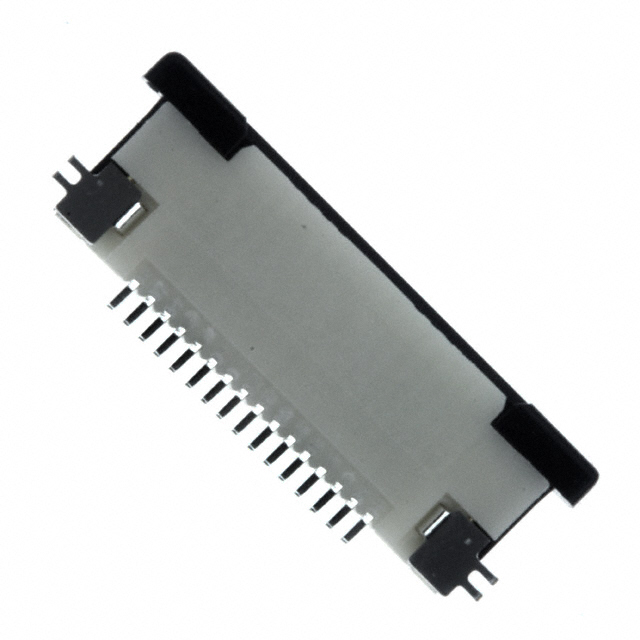

16FLZ-RSM2-TB(LF)(SN)

Active

JST Sales America Inc.

CONN FFC BOTTOM 16POS 0.5MM R/A

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN FFC BOTTOM 16POS 0.5MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	16FLZ-RSM2-TB(LF)(SN)

Actuator Color	Black
Actuator Material	Polyamide (PA6T), Nylon 6T
Cable End Type	Tapered
Connector/Contact Type	Contacts, Bottom
Contact Finish	Tin
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.5 A
Features	Zero Insertion Force (ZIF), Solder Retention
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board	0.079 in
Height Above Board	2 mm
Housing Color	Natural
Housing Material	Polyamide (PA6T), Nylon 6T
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	16
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	50 V

Part	Termination	Cable End Type	Locking Feature	Current Rating (Amps)	Flat Flex Type	Housing Color	Contact Material	Housing Material	Contact Finish	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Material	Actuator Color	Pitch [x]	Pitch [x]	Features	Number of Positions	FFC, FCB Thickness	Material Flammability Rating	Voltage Rating	Height Above Board	Height Above Board	Connector/Contact Type
JST Sales America Inc. 16FLZ-RSM2-TB(LF)(SN)	Solder	Tapered	Slide Lock	0.5 A	FFC FPC	Natural	Phosphor Bronze	Polyamide (PA6T) Nylon 6T	Tin	Surface Mount Right Angle	-25 °C	85 °C	Polyamide (PA6T) Nylon 6T	Black	0.5 mm	0.02 in	Solder Retention Zero Insertion Force (ZIF)	16	0.3 mm	UL94 V-0	50 V	0.079 in	2 mm	Contacts Bottom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

16 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
