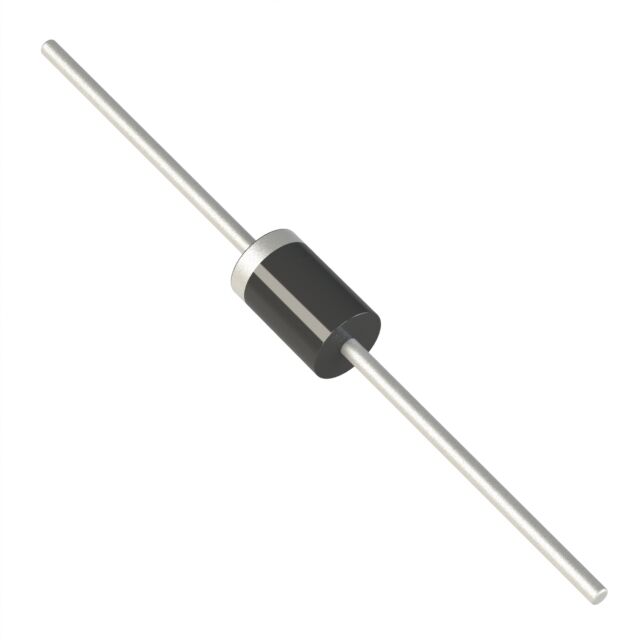

1.5KE10A
ActiveSTMicroelectronics
TVS D5.4X7.5 8.5V 1500W UNIDIR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1.5KE10A
ActiveSTMicroelectronics
TVS D5.4X7.5 8.5V 1500W UNIDIR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1.5KE10A |
|---|---|
| Applications | General Purpose |
| Capacitance @ Frequency | 7000 pF |
| Current - Peak Pulse (10/1000µs) | 538 A |
| Mounting Type | Through Hole |
| Package / Case | Axial, DO-27, DO-201AA |
| Power - Peak Pulse | 1.5 kW |
| Power - Peak Pulse | 1500 W |
| Power Line Protection | False |
| Supplier Device Package | DO-201 |
| Type | Zener |
| Unidirectional Channels [custom] | 1 |
| Voltage - Breakdown (Min) [Min] | 9.5 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 18.6 V |
| Voltage - Reverse Standoff (Typ) | 8.55 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1250 | $ 0.19 | |
| Cut Tape (CT) | 1 | $ 0.43 | ||
| 1 | $ 0.67 | |||
| 10 | $ 0.57 | |||
| 100 | $ 0.40 | |||
| 500 | $ 0.31 | |||
| Strip | 500 | $ 0.35 | ||
| Tape & Box (TB) | 1250 | $ 0.16 | ||
| 2500 | $ 0.15 | |||
| 6250 | $ 0.14 | |||
| 12500 | $ 0.13 | |||
| 31250 | $ 0.13 | |||
| 62500 | $ 0.12 | |||
| Tape & Reel (TR) | 1200 | $ 0.19 | ||
| 1250 | $ 0.16 | |||
| 1250 | $ 0.20 | |||
| 2500 | $ 0.18 | |||
| 2500 | $ 0.15 | |||
| 6250 | $ 0.14 | |||
| 6250 | $ 0.17 | |||
| 12500 | $ 0.16 | |||
| 12500 | $ 0.13 | |||
| 31250 | $ 0.13 | |||
| 31250 | $ 0.15 | |||
| 62500 | $ 0.12 | |||
| 62500 | $ 0.15 | |||
1.5KE10 Series
TVS D5.4X7.5 8.5V 1500W UNIDIR
| Part | Power Line Protection | Supplier Device Package | Voltage - Clamping (Max) @ Ipp [Max] | Applications | Mounting Type | Unidirectional Channels [custom] | Type | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) [Min] | Current - Peak Pulse (10/1000µs) | Capacitance @ Frequency | Package / Case | Power - Peak Pulse | Power - Peak Pulse |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics 1.5KE10A | DO-201 | 18.6 V | General Purpose | Through Hole | 1 | Zener | 8.55 V | 9.5 V | 538 A | 7000 pF | Axial, DO-201AA, DO-27 | 1.5 kW | 1500 W |
Description
General part information
1.5KE10 Series
18.6V Clamp 538A (8/20µs) Ipp Tvs Diode Through Hole DO-201
