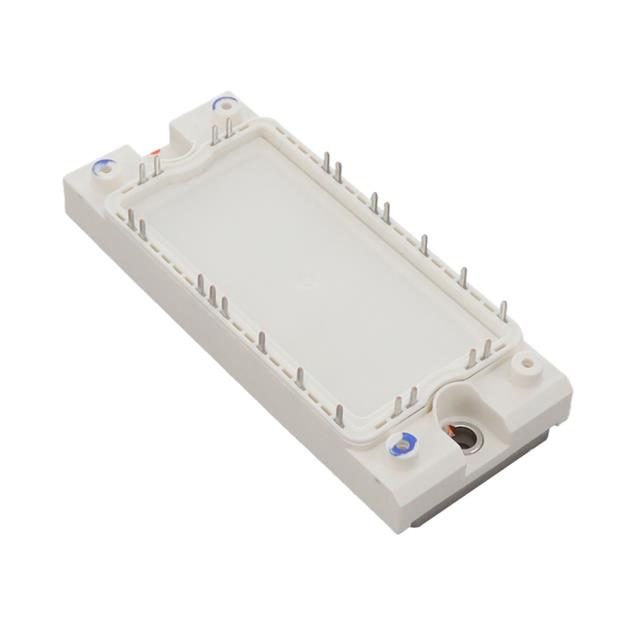

FP50R12N2T7PBPSA1

Active

Infineon Technologies

IGBT MODULE, PIM-3H, 1.2KV, 50A ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

FP50R12N2T7PBPSA1

Active

Infineon Technologies

IGBT MODULE, PIM-3H, 1.2KV, 50A ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FP50R12N2T7PBPSA1

Configuration	Three Phase Inverter
Current - Collector (Ic) (Max)	50 A
Current - Collector Cutoff (Max) [Max]	4 µA
IGBT Type	Trench Field Stop
Input	Three Phase Bridge Rectifier
Input Capacitance (Cies) @ Vce	11100 pF
Mounting Type	Chassis Mount
NTC Thermistor	True
Operating Temperature [Max]	175 °C
Operating Temperature [Min]	-40 C
Package / Case	Module
Power - Max [Max]	20 mW
Supplier Device Package	AG-ECONO2B
Vce(on) (Max) @ Vge, Ic	1.85 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

FP50R12 Series

Part	Current - Collector (Ic) (Max)	Package / Case	Supplier Device Package	Current - Collector Cutoff (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Power - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Configuration	Input Capacitance (Cies) @ Vce	Input	IGBT Type	Mounting Type	Vce(on) (Max) @ Vge, Ic	Current - Collector Cutoff (Max)
Infineon Technologies FP50R12KT4PB11BPSA1
Infineon Technologies FP50R12N2T4PB81BPSA2
Infineon Technologies FP50R12W2T7BPSA1	50 A	Module	AG-EASY2B	8 µA	1200 V	20 mW	-40 C	175 °C	Three Phase Inverter	11100 pF	Three Phase Bridge Rectifier	Trench Field Stop	Chassis Mount
Infineon Technologies FP50R12N2T7PBPSA1	50 A	Module	AG-ECONO2B	4 µA	1200 V	20 mW	-40 C	175 °C	Three Phase Inverter	11100 pF	Three Phase Bridge Rectifier	Trench Field Stop	Chassis Mount	1.85 V
Infineon Technologies FP50R12W2T7B11BOMA1	50 A	Module	AG-EASY2B-2	8 µA	1200 V	20 mW	-40 C	175 °C	Three Phase Inverter	11100 pF	Three Phase Bridge Rectifier	Trench Field Stop	Chassis Mount	1.5 V
Infineon Technologies FP50R12N2T7BPSA1	50 A	Module	AG-ECONO2B		1200 V	20 mW	-40 C	175 °C	Three Phase Inverter	11100 pF	Three Phase Bridge Rectifier	Trench Field Stop	Chassis Mount	1.5 V	10 µA
Infineon Technologies FP50R12N2T7BPSA2	50 A	Module	AG-ECONO2B		1200 V	20 mW	-40 C	175 °C	Three Phase Inverter	11100 pF	Three Phase Bridge Rectifier	Trench Field Stop	Chassis Mount	1.5 V	10 µA
Infineon Technologies FP50R12N2T7B11BPSA2	50 A	Module	AG-ECONO2B		1200 V	20 mW	-40 C	175 °C	Three Phase Inverter	11100 pF	Three Phase Bridge Rectifier	Trench Field Stop	Chassis Mount	1.5 V	10 µA
Infineon Technologies FP50R12W3T7B11BPSA1	50 A	Module	Module	13 µA	1200 V	20 mW	-40 C	175 °C	Three Phase Inverter	6.62 nF	Three Phase Bridge Rectifier	Trench Field Stop	Chassis Mount	1.8 V
Infineon Technologies FP50R12N2T4B16BOSA1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 115.07
		10	$ 106.52
		30	$ 102.63
		80	$ 97.96
Newark	Each	1	$ 84.69
		5	$ 76.07
		10	$ 67.44

Description

General part information

FP50R12 Series

EconoPIM™ 21200 V, 50 A three phase PIMIGBT modulewithTRENCHSTOP™ IGBT7, Emitter Controlled 7 diode, NTC and pre-appliedThermal Interface Material. The PIM (Power Integrated Modules) with integration of rectifier and brake chopper enables system cost savings. Also available as variation with PressFIT mounting technology.
