29500 010100

Active

Belden Inc.

CABLE 4COND 16AWG BLK SHLD 100'

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 4COND 16AWG BLK SHLD 100'

Technical Specifications

Parameters and characteristics for this part

Specification	29500 010100

Cable Type	Multi-Conductor
Conductor Insulation	Polyolefin (PO)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	30 AWG
Conductor Strand [custom]	26
Features	Oil Resistant, UV Resistant, Drain Wire
Jacket (Insulation) Diameter [diameter]	0.534 "
Jacket (Insulation) Diameter [diameter]	13.56 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.854 mm
Jacket (Insulation) Thickness	0.073 in
Jacket Color	Black
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	4
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Shield Coverage	100 %, 85 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Variable Frequency Drive (VFD), Motor Supply
Wire Gauge	16 AWG

Part	Number of Conductors	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Material	Conductor Material	Usage	Shield Material	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Shield Coverage	Features	Cable Type	Conductor Insulation	Shield Type
Belden Inc. 29500 010100	4	Black	1.854 mm	0.073 in	90 °C	-40 °C	Poly-Vinyl Chloride (PVC)	Copper Tinned	Motor Supply Variable Frequency Drive (VFD)	Aluminum Copper Tinned	30.5 m	100 ft	30 AWG	26	0.534 "	13.56 mm	16 AWG	85 % 100 %	Drain Wire Oil Resistant UV Resistant	Multi-Conductor	Polyolefin (PO)	Braid Foil

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

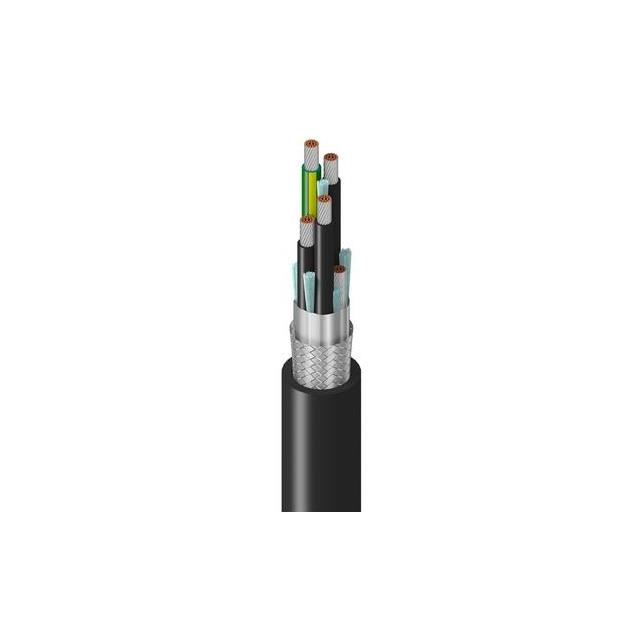

4 Conductor Multi-Conductor Cable Black 16 AWG Foil, Braid 100.0' (30.5m)

Technical documentation and resources
