STM32U585AII6QTR

Active

STMicroelectronics

ULTRA-LOW-POWER WITH FPU ARM CORTEX-M33 MCU WITH TRUSTZONE, 160 MHZ WITH 2 MBYTES OF FLASH MEMORY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet AN6179 +107

STM32U585AII6QTR

Active

STMicroelectronics

ULTRA-LOW-POWER WITH FPU ARM CORTEX-M33 MCU WITH TRUSTZONE, 160 MHZ WITH 2 MBYTES OF FLASH MEMORY

Deep-Dive with AI

DocumentsDatasheet AN6179 +107

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	STM32U585AII6QTR	STM32U585AI Series

	-	-
Core Processor	ARM® Cortex®-M33	ARM® Cortex®-M33
Core Size	32-Bit	32-Bit
Data Converters	A/D 24x12/14b SAR, D/A 2x12b	A/D 24x12/14b SAR, D/A 2x12b
Mounting Type	Surface Mount	Surface Mount
Number of I/O	133	133
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Oscillator Type	External, Internal	External, Internal

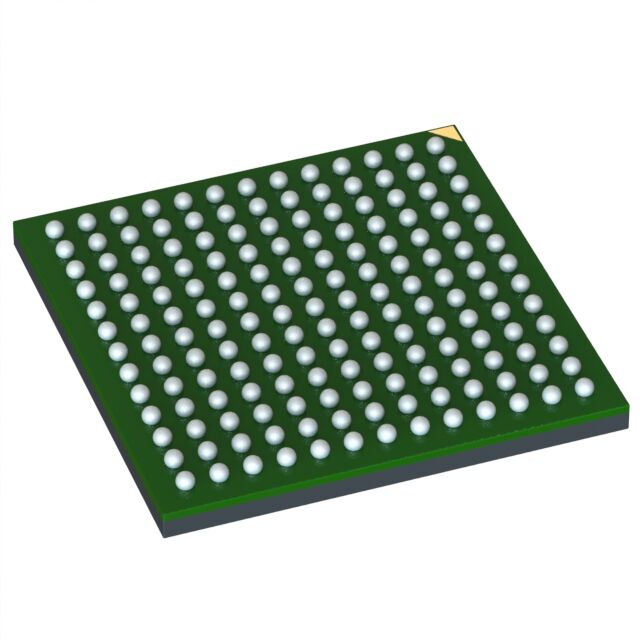

Package / Case	169-UFBGA	169-UFBGA
Peripherals	PWM, POR, DMA, Motor Control PWM, WDT, LCD, Brown-out Detect/Reset	PWM, POR, DMA, Motor Control PWM, WDT, LCD, Brown-out Detect/Reset
Program Memory Size	2 MB	2 MB
Program Memory Type	FLASH	FLASH
RAM Size	784 K	784 K
Speed	160 MHz	160 MHz
Supplier Device Package	169-UFBGA (7x7)	169-UFBGA (7x7)
Voltage - Supply (Vcc/Vdd) [Max]	3.6 V	3.6 V
Voltage - Supply (Vcc/Vdd) [Min]	1.71 V	1.71 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2500	$ 6.46

STM32U585AI Series

Ultra-low-power with FPU Arm Cortex-M33 MCU with TrustZone, 160 MHz with 2 Mbytes of Flash memory

Part	Peripherals	Core Size	Mounting Type	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Number of I/O	Program Memory Size	Data Converters	Operating Temperature [Max]	Operating Temperature [Min]	Oscillator Type	Program Memory Type	Package / Case	Speed	Core Processor	RAM Size	Supplier Device Package
STMicroelectronics STM32U585AII6TR
STMicroelectronics STM32U585AII6Q	Brown-out Detect/Reset, DMA, LCD, Motor Control PWM, POR, PWM, WDT	32-Bit	Surface Mount	3.6 V	1.71 V	133	2 MB	A/D 24x12/14b SAR, D/A 2x12b	85 °C	-40 °C	External, Internal	FLASH	169-UFBGA	160 MHz	ARM® Cortex®-M33	784 K	169-UFBGA (7x7)
STMicroelectronics STM32U585AII6
STMicroelectronics STM32U585AII6QTR
STMicroelectronics STM32U585AII3
STMicroelectronics STM32U585AII6Q
STMicroelectronics STM32U585AII6QTR	Brown-out Detect/Reset, DMA, LCD, Motor Control PWM, POR, PWM, WDT	32-Bit	Surface Mount	3.6 V	1.71 V	133	2 MB	A/D 24x12/14b SAR, D/A 2x12b	85 °C	-40 °C	External, Internal	FLASH	169-UFBGA	160 MHz	ARM® Cortex®-M33	784 K	169-UFBGA (7x7)

Description

General part information

STM32U585AI Series

The STM32U585xx devices belong to an ultra-low-power microcontrollers family (STM32U5 series) based on the high-performance Arm®Cortex®-M33 32-bit RISC core. They operate at a frequency of up to 160 MHz.

The Cortex®-M33 core features a single-precision FPU (floating-point unit), that supports all the Arm®single-precision data-processing instructions and all the data types.

The Cortex®-M33 core also implements a full set of DSP (digital signal processing) instructions and a MPU (memory protection unit) that enhances the application security.
