SRCN2A13-5P

Active

JAE Electronics

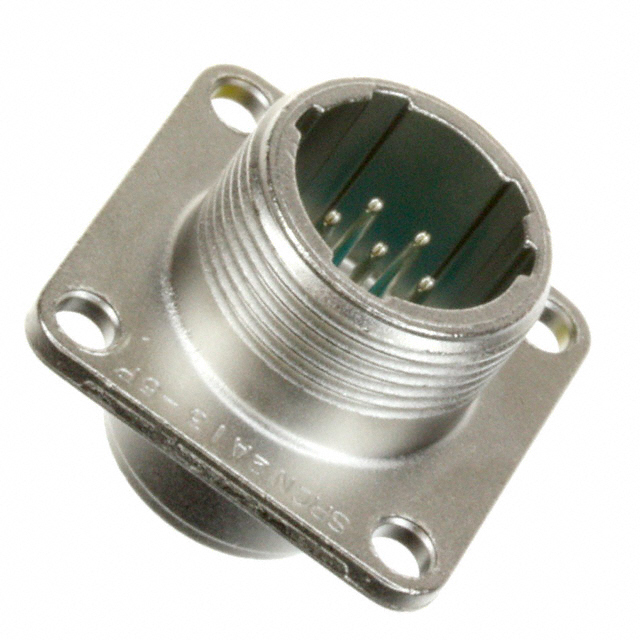

CONN RCPT MALE 5P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCircular Connectors Datasheet

SRCN2A13-5P

Active

JAE Electronics

CONN RCPT MALE 5P SOLDER CUP

Deep-Dive with AI

DocumentsCircular Connectors Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SRCN2A13-5P

Applications	Communication Systems, Telecommunications, Test Equipment & Measurement
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Insert Material	Plastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	N
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert	13-5
Voltage Rating	350 V, 250 VAC

SRCN2A13 Series

Part	Orientation	Contact Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Shell Size - Insert	Applications	Material Flammability Rating	Shell Finish	Shell Material	Color	Contact Finish - Mating	Mounting Feature	Current Rating (Amps)	Voltage Rating	Insert Material
JAE Electronics SRCN2A13-3S-A534	N	Copper Alloy	Receptacle Female Sockets	-25 °C	85 °C	Metal	13-3	Communication Systems Telecommunications Test Equipment & Measurement	UL94 V-0	Nickel	Aluminum Alloy
JAE Electronics SRCN2A13-5P	N	Copper Alloy	Male Pins Receptacle	-25 °C	85 °C	Metal	13-5	Communication Systems Telecommunications Test Equipment & Measurement	UL94 V-0	Nickel	Aluminum Alloy	Silver	Silver	Flange	5 A	250 VAC 350 V	Plastic
JAE Electronics SRCN2A13-3P	N	Copper Alloy	Male Pins Receptacle	-25 °C	85 °C	Metal	13-3	Communication Systems Telecommunications Test Equipment & Measurement	UL94 V-0	Nickel	Aluminum Alloy	Silver	Silver	Flange	10 A	250 VAC 350 V	Plastic
JAE Electronics SRCN2A13-5PX	X	Copper Alloy	Male Pins Receptacle	-25 °C	85 °C	Metal	13-5	Communication Systems Telecommunications Test Equipment & Measurement	UL94 V-0	Nickel	Aluminum Alloy	Silver	Silver	Flange	5 A	250 VAC 350 V	Plastic
JAE Electronics SRCN2A13-5S	N	Copper Alloy	Receptacle Female Sockets	-25 °C	85 °C	Metal	13-5	Communication Systems Telecommunications Test Equipment & Measurement	UL94 V-0	Nickel	Aluminum Alloy	Silver	Silver	Flange	5 A	250 VAC 350 V	Plastic
JAE Electronics SRCN2A13-3S	N	Copper Alloy	Receptacle Female Sockets	-25 °C	85 °C	Metal	13-3	Communication Systems Telecommunications Test Equipment & Measurement	UL94 V-0	Nickel	Aluminum Alloy	Silver	Silver	Flange	10 A	250 VAC 350 V	Plastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.35
		10	$ 4.86
		25	$ 4.60
		50	$ 4.50
		100	$ 4.28
		250	$ 3.75
		500	$ 3.64
		1000	$ 3.10
		2500	$ 2.89

Description

General part information

SRCN2A13 Series

5 Position Circular Connector Receptacle, Male Pins Solder Cup

Documents

Technical documentation and resources

Circular Connectors

Datasheet
