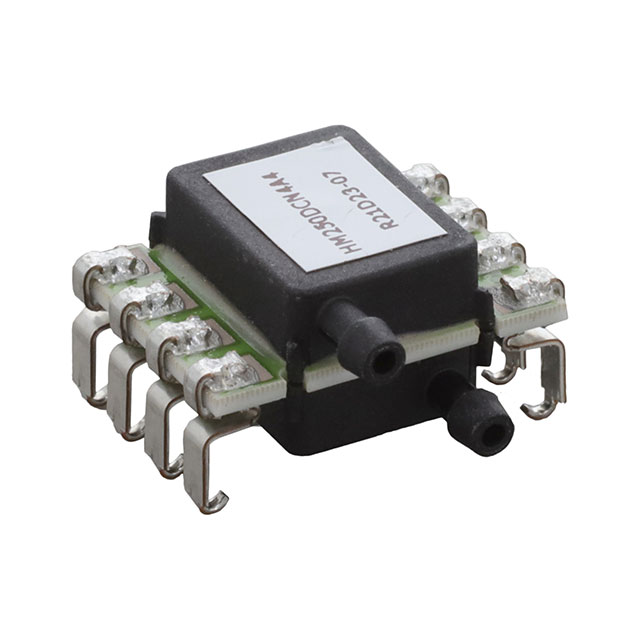

ELVH-M250D-HRRJ-C-N4A4

Active

Amphenol All Sensors Corporation

SENSOR 3.63PSID 0.06" 14BIT

Search across all available documentation for this part.

Active

Amphenol All Sensors Corporation

SENSOR 3.63PSID 0.06" 14BIT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pressure Sensor -0.29PSI ~ 3.63PSI (-2kPa ~ 25kPa) Differential Male - 0.06" (1.6mm) Tube, Dual 14 b 8-SMD, J-Lead, Dual Ports, Same Side

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	ELVH-M250D-HRRJ-C-N4A4	ELVH-M250D Series

Accuracy	0.25 %	0.25 %
Features	Temperature Compensated	Temperature Compensated
Maximum Pressure [Max]	12.33 PSI	12.33 PSI
Maximum Pressure [Max]	85 kPa	85 kPa
Mounting Type	Surface Mount	Surface Mount, Through Hole
Operating Pressure [Max]	25 kPa	25 kPa
Operating Pressure [Min]	-2 kPa	-2 kPa
Operating Temperature	-	85 °C
Operating Temperature	-	-20 C
Output	14 b	14 b
Output Type	I2C	Analog Voltage, SPI, I2C
Package / Case	Dual Ports, J-Lead, 8-SMD, Same Side	Dual Ports, J-Lead, 8-SMD, Same Side, 8-DIP
Package / Case	-	12.8 mm
Package / Case	-	0.504 in
Port Size	Tube, Male, Dual	Tube, Male, Dual
Port Size	0.06 "	0.06 "
Port Size	1.6 mm	1.6 mm
Port Style	Barbed	Barbed
Pressure Type	Differential	Differential
Supplier Device Package	-	8-DIP
Termination Style	J Lead	J Lead, PC Pin
Voltage - Supply [Max]	5.5 V	5.5 V
Voltage - Supply [Min]	2.7 V	2.7 V

SENSOR 3.63PSID 0.06"

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Operating Pressure [Min]	Operating Pressure [Max]	Pressure Type	Port Style	Maximum Pressure [Max]	Maximum Pressure [Max]	Features	Package / Case	Port Size	Port Size	Port Size	Accuracy	Termination Style	Output Type	Output	Supplier Device Package	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]
Amphenol All Sensors Corporation ELVH-M250D-HRRJ-C-NAA4	2.7 V	5.5 V	Surface Mount	-2 kPa	25 kPa	Differential	Barbed	12.33 PSI	85 kPa	Temperature Compensated	8-SMD, Dual Ports, J-Lead, Same Side	Dual, Male, Tube	0.06 "	1.6 mm	0.25 %	J Lead	Analog Voltage
Amphenol All Sensors Corporation ELVH-M250D-HRRD-C-NSA4	2.7 V	5.5 V	Through Hole	-2 kPa	25 kPa	Differential	Barbed	12.33 PSI	85 kPa	Temperature Compensated	8-DIP, Dual Ports, Same Side	Dual, Male, Tube	0.06 "	1.6 mm	0.25 %	PC Pin	SPI	14 b	8-DIP	12.8 mm	0.504 in
Amphenol All Sensors Corporation ELVH-M250D-HRRJ-I-N3A5	2.7 V	5.5 V	Surface Mount	-2 kPa	25 kPa	Differential	Barbed	12.33 PSI	85 kPa	Temperature Compensated	8-SMD, Dual Ports, J-Lead, Same Side	Dual, Male, Tube	0.06 "	1.6 mm	0.25 %	J Lead	I2C	14 b				85 °C	-20 C
Amphenol All Sensors Corporation ELVH-M250D-HRRJ-C-N4A4	2.7 V	5.5 V	Surface Mount	-2 kPa	25 kPa	Differential	Barbed	12.33 PSI	85 kPa	Temperature Compensated	8-SMD, Dual Ports, J-Lead, Same Side	Dual, Male, Tube	0.06 "	1.6 mm	0.25 %	J Lead	I2C	14 b
