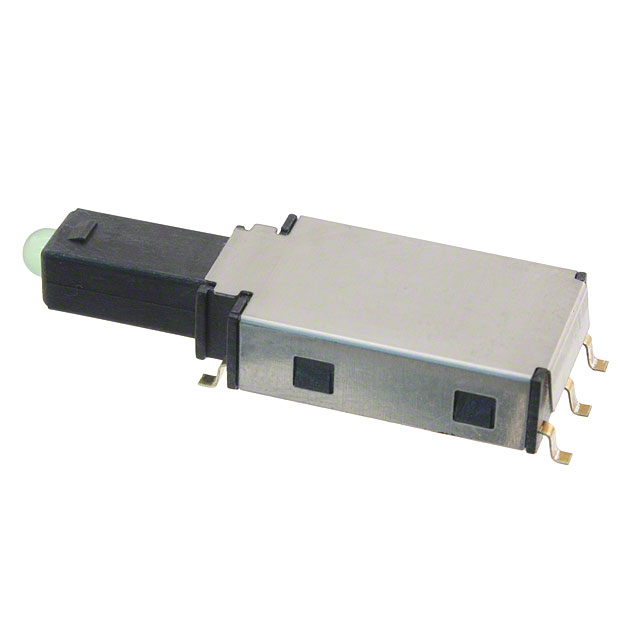

LP37OACGG

Active

E-Switch

SWITCH: PUSH-BUTTON; POS: 2; SPDT; 0.25A/50VDC; RCONT MAX: 50MΩ

Search across all available documentation for this part.

Active

E-Switch

SWITCH: PUSH-BUTTON; POS: 2; SPDT; 0.25A/50VDC; RCONT MAX: 50MΩ

Technical Specifications

Parameters and characteristics for this part

Specification	LP37OACGG

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	250 mA
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	2.2 VDC
Mechanical Life	30000 Steps
Mounting Type	Surface Mount, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-Mom
Termination Style	Gull Wing
Type	Illuminated, Standard
Voltage Rating - DC	50 VDC

Part	Current Rating (Amps)	Type	Switch Function	Actuator Marking	Termination Style	Illumination Type, Color	Voltage Rating - DC	Mechanical Life	Actuator Type	Mounting Type	Illumination Voltage (Nominal)	Color - Actuator/Cap	Operating Temperature [Min]	Operating Temperature [Max]	Circuit
E-Switch LP37OACGG	250 mA	Illuminated Standard	On-Mom	No Marking	Gull Wing	Green LED	50 VDC	30000 Steps	Plunger for Cap	Surface Mount Right Angle	2.2 VDC	Black	-30 ░C	85 °C	SPDT
E-Switch LP37OACGR	250 mA	Illuminated Standard	On-Mom	No Marking	Gull Wing	LED Red	50 VDC	30000 Steps	Plunger for Cap	Surface Mount Right Angle	2.3 VDC	Black	-30 ░C	85 °C	SPDT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	450	$ 5.25
TME	N/A	450	$ 10.46

General part information

Pushbutton Switch SPDT Standard, Illuminated Surface Mount, Right Angle
