EN3P12F26SX
ActiveSwitchcraft Inc.

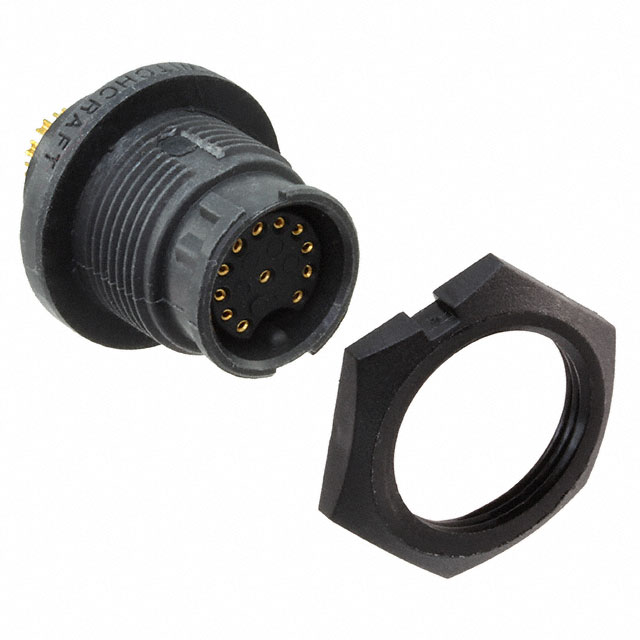

CONN RCPT FMALE 12P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EN3P12F26SX
ActiveSwitchcraft Inc.
CONN RCPT FMALE 12P SOLDER CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EN3P12F26SX | EN3P12 Series |
|---|---|---|
| Applications | Instrumentation, Medical, General Purpose, Marine | Instrumentation, Medical, General Purpose, Marine |
| Color | Black | Black |
| Connector Type | Receptacle, Female Sockets | Receptacle, Male Pins, Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 3 A | 2 - 3 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Ingress Protection | IP66/IP68 | IP66/IP68 |
| Insert Material | Elastomer | Elastomer |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | - | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 12 | 12 |
| Operating Temperature [Max] | 65 °C | 65 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | - | Circuit Board, Solder, Solder |
| Voltage Rating | 250 VAC | 250 VAC |
EN3P12 Series
CONN RCPT MALE 12P GOLD SLDR CUP
| Part | Fastening Type | Insert Material | Voltage Rating | Contact Finish - Mating | Number of Positions | Connector Type | Ingress Protection | Applications | Material Flammability Rating | Shielding | Contact Material | Current Rating (Amps) | Primary Material | Operating Temperature [Max] | Operating Temperature [Min] | Orientation | Mounting Feature | Color | Mounting Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. EN3P12M26SX | Bayonet Lock | Elastomer | 250 VAC | Gold | 12 | Male Pins, Receptacle | IP66/IP68 | General Purpose, Instrumentation, Marine, Medical | UL94 V-0 | Unshielded | Copper Alloy | 3 A | Plastic | 65 °C | -40 °C | Keyed | Bulkhead - Front Side Nut | Black | ||
Switchcraft Inc. EN3P12F26SX | Bayonet Lock | Elastomer | 250 VAC | Gold | 12 | Receptacle, Female Sockets | IP66/IP68 | General Purpose, Instrumentation, Marine, Medical | UL94 V-0 | Unshielded | Copper Alloy | 3 A | Plastic | 65 °C | -40 °C | Keyed | Bulkhead - Front Side Nut | Black | ||
Switchcraft Inc. EN3P12MRAPCBN | Bayonet Lock | Elastomer | 250 VAC | Gold | 12 | Male Pins, Receptacle | IP66/IP68 | General Purpose, Instrumentation, Marine, Medical | UL94 V-0 | Unshielded | Copper Alloy | 2 A | Plastic | 65 °C | -40 °C | Keyed | Bulkhead - Front Side Nut | Black | Panel Mount, Right Angle, Through Hole | Circuit Board, Solder |
Switchcraft Inc. EN3P12FRAPCBW | Bayonet Lock | Elastomer | 250 VAC | Gold | 12 | Receptacle, Female Sockets | IP66/IP68 | General Purpose, Instrumentation, Marine, Medical | UL94 V-0 | Unshielded | Copper Alloy | 2 A | Plastic | 65 °C | -40 °C | Keyed | Bulkhead - Front Side Nut | Black | Panel Mount, Right Angle, Through Hole | Circuit Board, Solder |
Switchcraft Inc. EN3P12M26PX | Bayonet Lock | Elastomer | 250 VAC | Gold | 12 | Male Pins, Receptacle | IP66/IP68 | General Purpose, Instrumentation, Marine, Medical | UL94 V-0 | Unshielded | Copper Alloy | 3 A | Plastic | 65 °C | -40 °C | Keyed | Bulkhead - Front Side Nut | Black | Panel Mount, Through Hole | Solder |
Switchcraft Inc. EN3P12MRAPCBW | Bayonet Lock | Elastomer | 250 VAC | Gold | 12 | Male Pins, Receptacle | IP66/IP68 | General Purpose, Instrumentation, Marine, Medical | UL94 V-0 | Unshielded | Copper Alloy | 2 A | Plastic | 65 °C | -40 °C | Keyed | Bulkhead - Front Side Nut | Black | Panel Mount, Right Angle, Through Hole | Circuit Board, Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 34.54 | |
| 10 | $ 26.68 | |||
| 25 | $ 24.19 | |||
| 50 | $ 22.50 | |||
| 100 | $ 20.98 | |||
| 300 | $ 18.85 | |||
| 500 | $ 18.04 | |||
Description
General part information
EN3P12 Series
12 Position Circular Connector Receptacle, Female Sockets Solder Cup
