EN3P12FRAPCBW

Active

Switchcraft Inc.

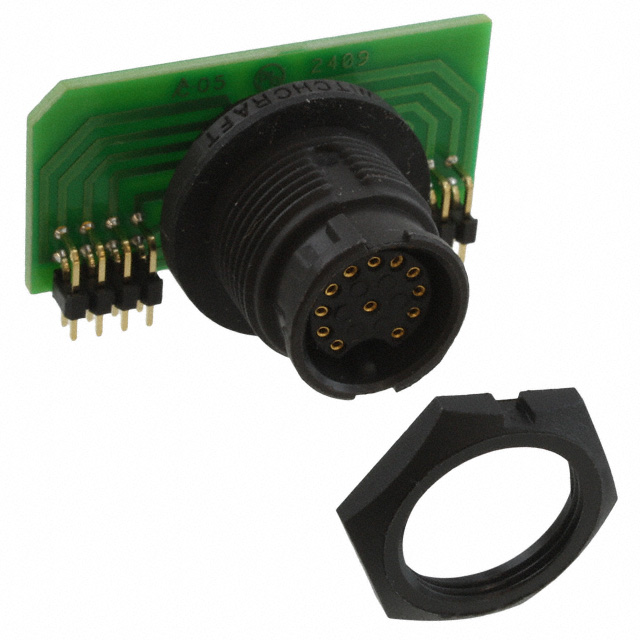

CONN RCPT FMALE 12POS SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EN3P12FRAPCBW

Active

Switchcraft Inc.

CONN RCPT FMALE 12POS SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.75
		10	$ 18.17
		25	$ 17.39
		50	$ 17.31

Description

General part information

EN3P12 Series

12 Position Circular Connector Receptacle, Female Sockets Circuit Board, Solder

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN3P12FRAPCBW	EN3P12 Series

Applications	Instrumentation, Medical, General Purpose, Marine	Instrumentation, Medical, General Purpose, Marine
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Male Pins, Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	2 A	2 - 3 A
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Number of Positions	12	12
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Circuit Board, Solder	Circuit Board, Solder, Solder
Voltage Rating	250 VAC	250 VAC

EN3P12 Series

CONN RCPT MALE 12P GOLD SLDR CUP

Part	Fastening Type	Insert Material	Voltage Rating	Contact Finish - Mating	Number of Positions	Connector Type	Ingress Protection	Applications	Material Flammability Rating	Shielding	Contact Material	Current Rating (Amps)	Primary Material	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Mounting Feature	Color	Mounting Type	Termination
Switchcraft Inc. EN3P12M26SX	Bayonet Lock	Elastomer	250 VAC	Gold	12	Male Pins, Receptacle	IP66/IP68	General Purpose, Instrumentation, Marine, Medical	UL94 V-0	Unshielded	Copper Alloy	3 A	Plastic	65 °C	-40 °C	Keyed	Bulkhead - Front Side Nut	Black
Switchcraft Inc. EN3P12F26SX	Bayonet Lock	Elastomer	250 VAC	Gold	12	Receptacle, Female Sockets	IP66/IP68	General Purpose, Instrumentation, Marine, Medical	UL94 V-0	Unshielded	Copper Alloy	3 A	Plastic	65 °C	-40 °C	Keyed	Bulkhead - Front Side Nut	Black
Switchcraft Inc. EN3P12MRAPCBN	Bayonet Lock	Elastomer	250 VAC	Gold	12	Male Pins, Receptacle	IP66/IP68	General Purpose, Instrumentation, Marine, Medical	UL94 V-0	Unshielded	Copper Alloy	2 A	Plastic	65 °C	-40 °C	Keyed	Bulkhead - Front Side Nut	Black	Panel Mount, Right Angle, Through Hole	Circuit Board, Solder
Switchcraft Inc. EN3P12FRAPCBW	Bayonet Lock	Elastomer	250 VAC	Gold	12	Receptacle, Female Sockets	IP66/IP68	General Purpose, Instrumentation, Marine, Medical	UL94 V-0	Unshielded	Copper Alloy	2 A	Plastic	65 °C	-40 °C	Keyed	Bulkhead - Front Side Nut	Black	Panel Mount, Right Angle, Through Hole	Circuit Board, Solder
Switchcraft Inc. EN3P12M26PX	Bayonet Lock	Elastomer	250 VAC	Gold	12	Male Pins, Receptacle	IP66/IP68	General Purpose, Instrumentation, Marine, Medical	UL94 V-0	Unshielded	Copper Alloy	3 A	Plastic	65 °C	-40 °C	Keyed	Bulkhead - Front Side Nut	Black	Panel Mount, Through Hole	Solder
Switchcraft Inc. EN3P12MRAPCBW	Bayonet Lock	Elastomer	250 VAC	Gold	12	Male Pins, Receptacle	IP66/IP68	General Purpose, Instrumentation, Marine, Medical	UL94 V-0	Unshielded	Copper Alloy	2 A	Plastic	65 °C	-40 °C	Keyed	Bulkhead - Front Side Nut	Black	Panel Mount, Right Angle, Through Hole	Circuit Board, Solder
