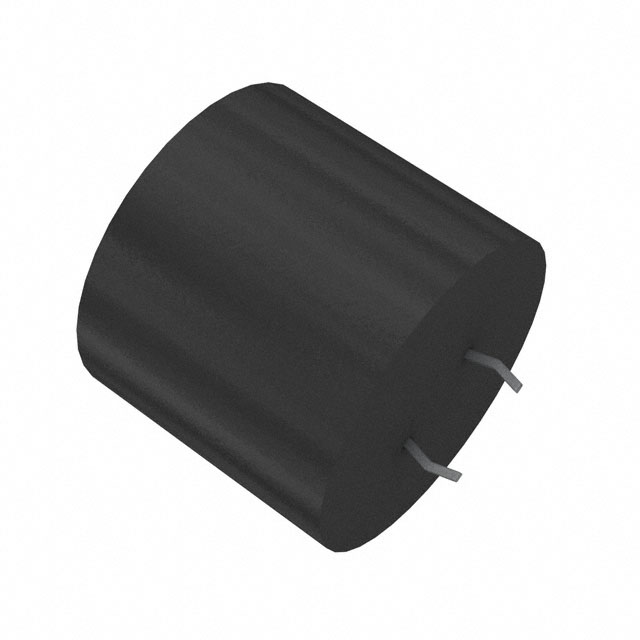

PEH534YDC3220M2

Active

KEMET

CAP ALUMINUM LYTIC 220UF 450V 20% (35 X 30MM) SNAP-IN 10MM 0.39 OHM 1.2A 3000H 105°C BAG

Search across all available documentation for this part.

Active

KEMET

CAP ALUMINUM LYTIC 220UF 450V 20% (35 X 30MM) SNAP-IN 10MM 0.39 OHM 1.2A 3000H 105°C BAG

Technical Specifications

Parameters and characteristics for this part

Specification	PEH534YDC3220M2

Applications	General Purpose
Capacitance	220 µF
Height - Seated (Max) [Max] [z]	1.181 "
Height - Seated (Max) [Max] [z]	30 mm
Lead Spacing	0.394 in
Lead Spacing	10 mm
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can - Snap-In
Polarization	Polar
Ripple Current @ Low Frequency	1.2 A
Size / Dimension [diameter]	1.378 in
Size / Dimension [diameter]	35 mm
Tolerance	20 %
Voltage - Rated	450 V

Part	Tolerance	Voltage - Rated	Mounting Type	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Lead Spacing	Lead Spacing	Capacitance	ESR (Equivalent Series Resistance)	Package / Case	Polarization	Ripple Current @ Low Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET PEH534YDG3470M2	20 %	450 V	Through Hole	2000 Hrs	-40 °C	105 ░C	General Purpose	0.394 in	10 mm	470 µF	180 mOhm	Radial Can - Snap-In	Polar	1.9 A	1.378 in	35 mm
KEMET PEH534YDC3220M2	20 %	450 V	Through Hole	2000 Hrs	-40 °C	105 ░C	General Purpose	0.394 in	10 mm	220 µF		Radial Can - Snap-In	Polar	1.2 A	1.378 in	35 mm	1.181 "	30 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

220 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 390mOhm @ 100Hz 2000 Hrs @ 105°C
