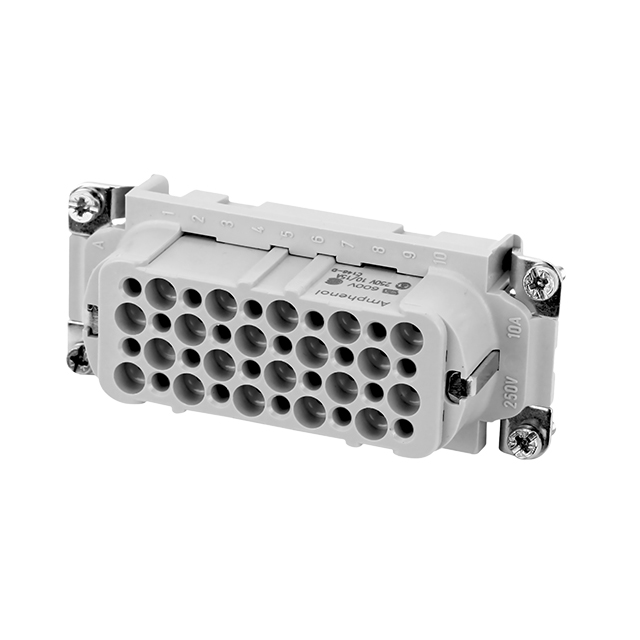

C146 10B040 500 2

Active

Amphenol Tuchel Industrial

INSERT FEMALE 40POS+1GND CRIMP

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

INSERT FEMALE 40POS+1GND CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	C146 10B040 500 2

Color	Gray
Connector Type	Insert without Contacts
Contact Type	DD, M, C146 D, heavy\|mate®
Current Rating (Amps)	15 A
Gender	Female
Material Flammability Rating	UL94 V-0
Number of Positions	40+Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	E16
Termination Style	Crimp
Voltage Rating	600 V

Part	Number of Positions	Material Flammability Rating	Contact Type	Connector Type	Current Rating (Amps)	Termination Style	Size	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Color	Gender
Amphenol Tuchel Industrial C146 10B040 500 2	40+Ground	UL94 V-0	C146 D DD heavy\|mate® M	Insert without Contacts	15 A	Crimp	E16	125 °C	-40 °C	600 V	Gray	Female

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 16.27

General part information

Female Insert without Contacts Gray 40+Ground Position Crimp
