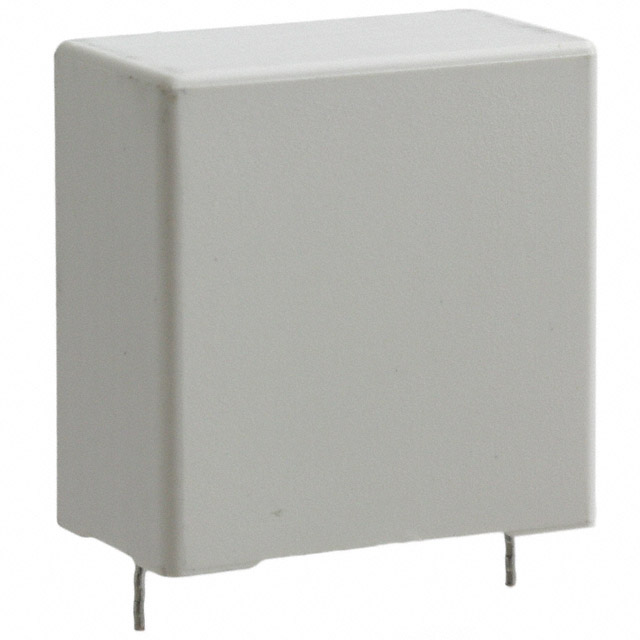

C4ATFBU4200A3BJ

Active

KEMET

CAP FILM 2UF 5% 400VDC RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP FILM 2UF 5% 400VDC RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	C4ATFBU4200A3BJ

Applications	Switching, High Frequency, DC Filtering, DC Link
Capacitance	2 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	5.6 mOhms
Height - Seated (Max) [Max] [z]	22 mm
Height - Seated (Max) [Max] [z]	0.866 in
Lead Spacing	27.5 mm
Lead Spacing	1.083 in
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial
Size / Dimension [x]	32 mm
Size / Dimension [x]	1.26 in
Size / Dimension [y]	13 mm
Size / Dimension [y]	0.512 in
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	250 V
Voltage Rating - DC	400 V

Part	Dielectric Material	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Capacitance	Termination	Applications	Lead Spacing	Lead Spacing	Voltage Rating - DC	Mounting Type	ESR (Equivalent Series Resistance)	Size / Dimension [y]
KEMET C4ATFBU4200A3BJ	Metallized Polypropylene (PP)	32 mm	13 mm	1.26 in	0.512 in	5 %	85 °C	-40 °C	250 V	22 mm	0.866 in	Radial	2 µF	PC Pins	DC Filtering DC Link High Frequency Switching	27.5 mm	1.083 in	400 V	Through Hole	5.6 mOhms
KEMET C4ATFBW5400A3NJ	Metallized Polypropylene (PP)	57.5 mm		2.264 in	1.378 "	5 %	85 °C	-40 °C	250 V			Radial - 4 Leads	40 µF	PC Pins	DC Filtering DC Link High Frequency Switching	52.5 mm	2.067 in	400 V	Through Hole	1.4 mOhms	35 mm
KEMET C4ATFBW5300A3MJ	Metallized Polypropylene (PP)	57.5 mm		2.264 in	1.181 in	5 %	85 °C	-40 °C	250 V	45 mm	1.772 in	Radial - 4 Leads	30 µF	PC Pins	DC Filtering DC Link High Frequency Switching	52.5 mm	2.067 in	400 V	Through Hole	1.7 mOhm	30 mm
KEMET C4ATFBW5200A3LJ	Metallized Polypropylene (PP)	42 mm		1.654 in	1.181 in	5 %	85 °C	-40 °C	250 V	45 mm	1.772 in	Radial - 4 Leads	20 µF	PC Pins	DC Filtering DC Link High Frequency Switching	37.5 mm	1.476 in	400 V	Through Hole	1.4 mOhms	30 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial
