Q-1Z0100001012i

Active

Amphenol Custom Cable

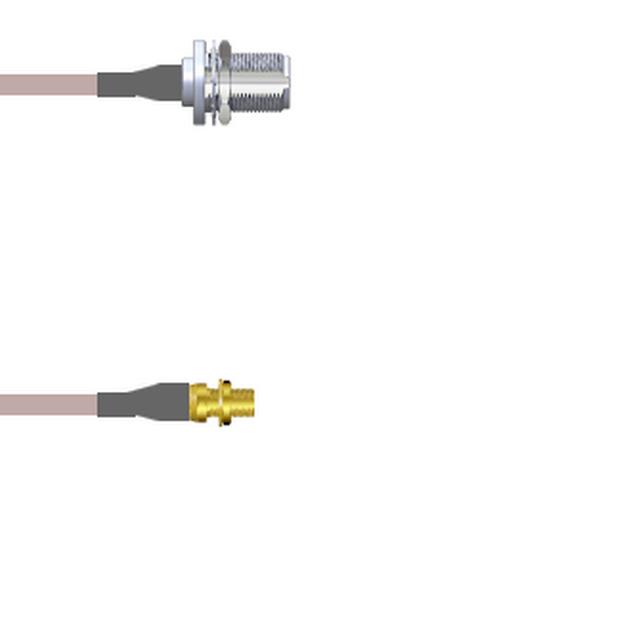

CBL ASSY MCX-NTYPE JACK-JACK 12"

Deep-Dive with AI

Search across all available documentation for this part.

Q-1Z0100001012i

Active

Amphenol Custom Cable

CBL ASSY MCX-NTYPE JACK-JACK 12"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1Z0100001012i

1st Connector	MCX Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	12 "
Length	304.8 mm
Overall Impedance	50 Ohms
Style	MCX to N-Type

Q-1Z0100 Series

Part	2nd Contact Gender	2nd Connector	1st Connector Mounting Type	1st Connector Mounting Feature	1st Contact Gender	Length	Length	Length	1st Connector	Frequency - Max [Max]	2nd Connector Mounting Feature	Overall Impedance	Style	Cable Type	Features	Color	2nd Connector Mounting Type
Amphenol Custom Cable Q-1Z0100001002M	Female	N-Type Jack	Panel Mount	Bulkhead - Front Side Nut	Female	6.6 ft	78.7 in	2 m	MCX Jack	6000 MHz	Bulkhead - Front Side Nut	50 Ohms	MCX to N-Type	RG-178	Shielded	Copper	Panel Mount
Amphenol Custom Cable Q-1Z01000011.5M	Female	N-Type Jack	Panel Mount	Bulkhead - Front Side Nut	Female	4.9 ft	59.1 in	1.5 m	MCX Jack	6000 MHz	Bulkhead - Front Side Nut	50 Ohms	MCX to N-Type	RG-178	Shielded	Copper	Panel Mount
Amphenol Custom Cable Q-1Z0100001048i	Female	N-Type Jack	Panel Mount	Bulkhead - Front Side Nut	Female	4 ft	48 in	1200 mm	MCX Jack	6000 MHz	Bulkhead - Front Side Nut	50 Ohms	MCX to N-Type	RG-178	Shielded	Copper	Panel Mount
Amphenol Custom Cable Q-1Z0100001006i	Female	N-Type Jack	Panel Mount	Bulkhead - Front Side Nut	Female		6 in	152.4 mm	MCX Jack	6000 MHz	Bulkhead - Front Side Nut	50 Ohms	MCX to N-Type	RG-178	Shielded	Copper	Panel Mount
Amphenol Custom Cable Q-1Z01000010.5M	Female	N-Type Jack	Panel Mount	Bulkhead - Front Side Nut	Female		19.69 "	50 cm	MCX Jack	6000 MHz	Bulkhead - Front Side Nut	50 Ohms	MCX to N-Type	RG-178	Shielded	Copper	Panel Mount
Amphenol Custom Cable Q-1Z0100001084i	Female	N-Type Jack	Panel Mount	Bulkhead - Front Side Nut	Female	7 ft	84 in	2.1 m	MCX Jack	6000 MHz	Bulkhead - Front Side Nut	50 Ohms	MCX to N-Type	RG-178	Shielded	Copper	Panel Mount
Amphenol Custom Cable Q-1Z0100001.75M	Female	N-Type Jack	Panel Mount	Bulkhead - Front Side Nut	Female		29.53 "	750 mm	MCX Jack	6000 MHz	Bulkhead - Front Side Nut	50 Ohms	MCX to N-Type	RG-178	Shielded	Copper	Panel Mount
Amphenol Custom Cable Q-1Z0100001072i	Female	N-Type Jack	Panel Mount	Bulkhead - Front Side Nut	Female	6 ft	72 in	1.8 m	MCX Jack	6000 MHz	Bulkhead - Front Side Nut	50 Ohms	MCX to N-Type	RG-178	Shielded	Copper	Panel Mount
Amphenol Custom Cable Q-1Z0100001001M	Female	N-Type Jack	Panel Mount	Bulkhead - Front Side Nut	Female	3.3 ft	39.4 in	1 m	MCX Jack	6000 MHz	Bulkhead - Front Side Nut	50 Ohms	MCX to N-Type	RG-178	Shielded	Copper	Panel Mount
Amphenol Custom Cable Q-1Z0100001012i	Female	N-Type Jack	Panel Mount	Bulkhead - Front Side Nut	Female		12 "	304.8 mm	MCX Jack	6000 MHz	Bulkhead - Front Side Nut	50 Ohms	MCX to N-Type	RG-178	Shielded	Copper	Panel Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 123.04
		25	$ 120.71
		50	$ 118.37
		100	$ 116.04
		250	$ 113.71

Description

General part information

Q-1Z0100 Series

Cable Assembly Coaxial MCX to N-Type RG-178 12.00" (304.80mm)

Documents

Technical documentation and resources

No documents available
