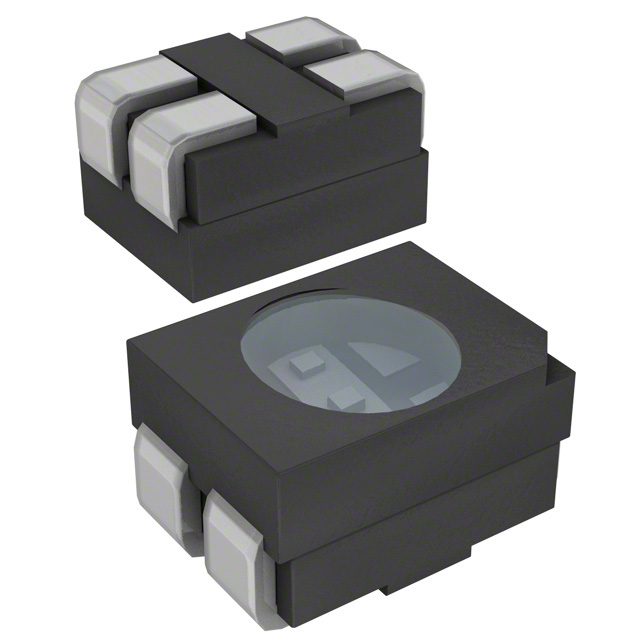

CLVBA-FKA-CA1D181BB7D3D3

Active

Cree LED

LED RGB 4PLCC SMD

Search across all available documentation for this part.

Active

Cree LED

LED RGB 4PLCC SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CLVBA-FKA-CA1D181BB7D3D3	CLVBA Series

Color	Red, Green, Blue	Red, Green, Blue
Configuration	Common Anode	Common Anode
Current - Test [custom]	8 mA	8 - 20 mA
Current - Test [custom]	8 mA	8 - 20 mA
Current - Test [custom]	8 mA	8 - 20 mA
Height (Max) [Max] [z]	2.1 mm	2.1 mm
Lens Color	-	White
Lens Transparency	-	Diffused
Millicandela Rating [custom]	74 mcd	74 mcd
Millicandela Rating [custom]	148 mcd	148 mcd
Millicandela Rating [custom]	295 mcd	295 mcd
Mounting Type	Surface Mount	Surface Mount
Package / Case	4-LCC	4-LCC, 4-PLCC
Size / Dimension [x]	3.2 mm	3.2 mm
Size / Dimension [y]	2.8 mm	2.8 mm
Supplier Device Package	4-PLCC	4-PLCC
Voltage - Forward (Vf) (Typ) [custom]	1.9 V	1.9 V
Voltage - Forward (Vf) (Typ) [custom]	3 V	3 V
Voltage - Forward (Vf) (Typ) [custom]	3 V	3 V
Wavelength - Dominant	622 nm, 530 nm, 470 nm	470 - 622 nm

LED RGB 4PLCC SMD

Part	Supplier Device Package	Package / Case	Height (Max) [Max] [z]	Color	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Wavelength - Dominant	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Configuration	Lens Transparency	Lens Color
Cree LED CLVBA-FKA-CA1D181BB7D3D3	4-PLCC	4-LCC	2.1 mm	Blue, Green, Red	2.8 mm	3.2 mm	Surface Mount	1.9 V	3 V	3 V	470 nm, 530 nm, 622 nm	74 mcd	148 mcd	295 mcd	8 mA	8 mA	8 mA	Common Anode
Cree LED CLVBA-FKA-CAEDH8BBB7A363	4-PLCC	4-PLCC	2.1 mm	Blue, Green, Red	2.8 mm	3.2 mm	Surface Mount	1.9 V	3 V	3 V	470 nm, 530 nm, 622 nm	74 mcd	148 mcd	295 mcd	20 mA	20 mA	20 mA	Common Anode	Diffused	White

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Red, Green, Blue (RGB) 622nm Red, 530nm Green, 470nm Blue LED Indication - Discrete 1.9V Red, 3V Green, 3V Blue 4-LCC (J-Lead)
