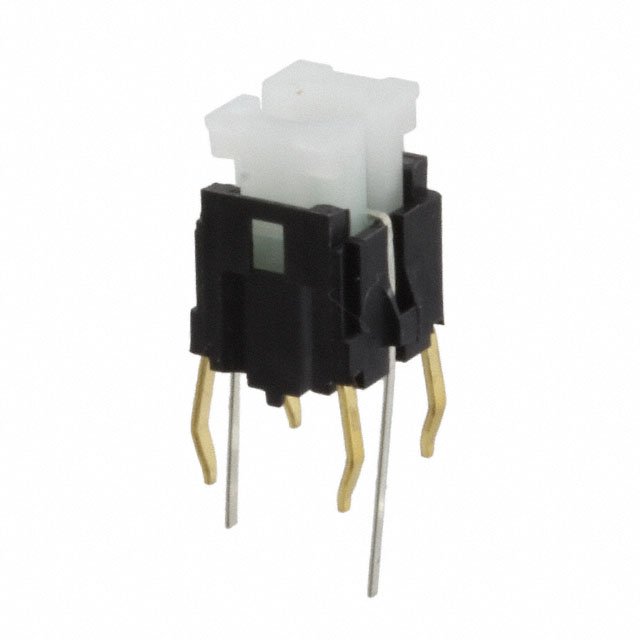

TR2-21-L5

Active

Nidec Components Corporation

PB SWITCH, SPST, 0.01A, 12VDC, THT/GREEN ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Nidec Components Corporation

PB SWITCH, SPST, 0.01A, 12VDC, THT/GREEN ROHS COMPLIANT: YES

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard, Illuminated Through Hole

Technical documentation and resources

Specification	TR2-21-L5	TR2-21 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Plunger for Cap	Plunger for Cap
Circuit	SPST-NO	SPST-NO
Current Rating (Amps)	10 mA	10 mA
Electrical Life	100000 Cycles	100000 Cycles
Illumination Type, Color	LED, Green	LED, Green, Yellow
Illumination Voltage (Nominal)	2.2 VDC	2.1 - 2.2 VDC
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Switch Function	Off-Mom	Off-Mom
Termination Style	PC Pin	PC Pin
Type	Illuminated, Standard	Illuminated, Standard
Voltage Rating - DC	12 V	12 V

Part	Mounting Type	Switch Function	Actuator Type	Illumination Type, Color	Electrical Life	Type	Illumination Voltage (Nominal)	Circuit	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Current Rating (Amps)	Termination Style
Nidec Components Corporation TR2-21-L5	Through Hole	Off-Mom	Plunger for Cap	Green, LED	100000 Cycles	Illuminated, Standard	2.2 VDC	SPST-NO	No Marking	70 °C	-25 °C	12 V	10 mA	PC Pin
Nidec Components Corporation TR2-21-L8	Through Hole	Off-Mom	Plunger for Cap	LED, Yellow	100000 Cycles	Illuminated, Standard	2.1 VDC	SPST-NO	No Marking	70 °C	-25 °C	12 V	10 mA	PC Pin
