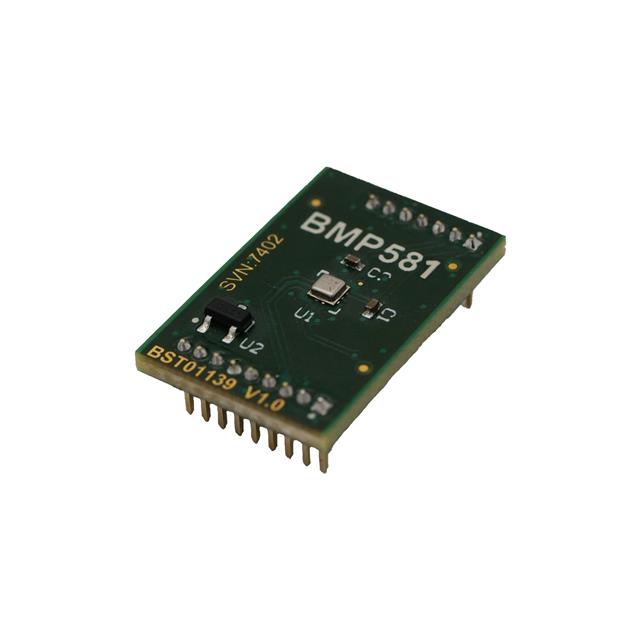

SHUTTLE BOARD 3.0 BMP581

Active

Bosch Sensortec

Search across all available documentation for this part.

Active

Bosch Sensortec

SHUTTLE BOARD 3.0 BMP581

Technical Specifications

Parameters and characteristics for this part

Part	Output Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Port Style	Supplier Device Package	Mounting Type	Package / Case	Operating Pressure [Min] [x]	Operating Pressure [Max] [x]	Operating Pressure [Max] [x]	Operating Pressure [Min] [x]	Type	Contents	Function	Interconnect System	Utilized IC / Part
Bosch Sensortec BMP581	I2C SPI	1.65 V	3.6 V	No Port	10-LGA (2x2)	Surface Mount	10-WFLGA	0.3 bar	18.13 PSI	125 kPa	4.35 PSI
Bosch Sensortec SHUTTLE BOARD 3.0 BMP581												Sensor	Board(s)	Pressure	Shuttle Board 3.0 Socket	BMP581

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 30.13

General part information

BMP581 Pressure Sensor Platform Evaluation Expansion Board
