Connectors, Interconnects

345-114-558-558

Active

EDAC Inc.

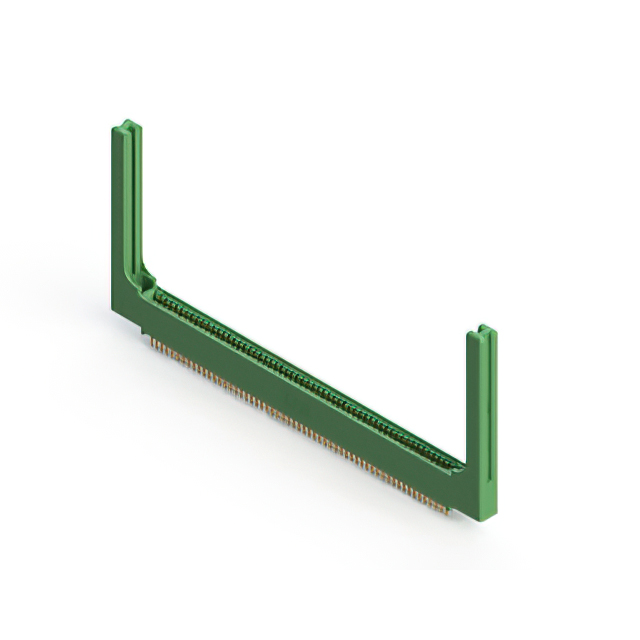

CONN EDGE DUAL FML 114POS 0.100

Connectors, Interconnects

345-114-558-558

Active

EDAC Inc.

CONN EDGE DUAL FML 114POS 0.100

Specifications Series Pricing CAD Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	345-114-558-558

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Guides
Flange Feature	4-40, Threaded Insert, Top Mount Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	57, 114
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.1 in
Read Out	Dual
Termination	Wire Wrap
Termination Rows	2 rows

345-114 Series

...

Part	Contact Finish	Pitch	Number of Positions	Operating Temperature (Min)	Operating Temperature (Max)	Contact Material	Termination	Card Thickness (Min)	Card Thickness (Max)	Card Type	Number of Rows	Read Out	Contact Type	Mounting Type	Contact Finish Thickness	Gender	Flange Feature Diameter	Flange Feature	Color	Termination Rows	Material - Insulation	Features
EDAC Inc. 345-114-540-203	Gold	0.1 in	57 114	-40 °C	105 °C	Copper Alloy	Wire Wrap	0.054 in	0.07 in	Dual Edge Non Specified	2	Dual	Cantilever	Through Hole	10 Ąin	Female	0.116 in	Floating Bobbin Flush Mount	Green	2 rows	Polyester Thermoplastic
EDAC Inc. 345-114-541-804	Gold	0.1 in	57 114	-40 °C	105 °C	Copper Alloy	Wire Wrap	0.054 in	0.07 in	Dual Edge Non Specified	2	Dual	Cantilever	Through Hole	10 Ąin	Female	0.156 in	Top Mount Opening Unthreaded	Green	2 rows	Polyester Thermoplastic
EDAC Inc. 345-114-524-503	Gold	0.1 in	57 114	-40 °C	105 °C	Copper Alloy	Solder	0.054 in	0.07 in	Dual Edge Non Specified	2	Dual	Cantilever	Through Hole	10 Ąin	Female	0.116 in	Floating Bobbin Top Mount Opening	Green	2 rows	Polyester Thermoplastic
EDAC Inc. 345-114-524-258	Gold	0.1 in	57 114	-40 °C	105 °C	Copper Alloy	Solder	0.054 in	0.07 in	Dual Edge Non Specified	2	Dual	Cantilever	Through Hole	10 Ąin	Female		4-40 Flush Mount Threaded Insert Top Opening	Green	2 rows	Polyester Thermoplastic	Card Guides
EDAC Inc. 345-114-558-558	Gold	0.1 in	57 114	-40 °C	105 °C	Copper Alloy	Wire Wrap	0.054 in	0.07 in	Dual Edge Non Specified	2	Dual	Cantilever	Right Angle Through Hole	10 Ąin	Female		4-40 Threaded Insert Top Mount Opening	Green	2 rows	Polyester Thermoplastic	Card Guides
EDAC Inc. 345-114-523-258	Gold	0.1 in	57 114	-40 °C	105 °C	Copper Alloy	Solder	0.054 in	0.07 in	Dual Edge Non Specified	2	Dual	Cantilever	Through Hole	10 Ąin	Female		4-40 Flush Mount Threaded Insert Top Opening	Green	2 rows	Polyester Thermoplastic	Card Guides
EDAC Inc. 345-114-559-212	Gold	0.1 in	57 114	-40 °C	105 °C	Copper Alloy	Wire Wrap	0.054 in	0.07 in	Dual Edge Non Specified	2	Dual	Cantilever	Right Angle Through Hole	10 Ąin	Female	0.128 in	Flush Mount Side Opening Unthreaded	Green	2 rows	Polyester Thermoplastic
EDAC Inc. 345-114-500-888	Gold	0.1 in	57 114	-40 °C	105 °C	Copper Alloy	Solder Eyelet(s)	0.054 in	0.07 in	Dual Edge Non Specified	2	Dual	Cantilever	Through Hole	10 Ąin	Female		4-40 Threaded Insert Top Mount Opening	Green	2 rows	Polyester Thermoplastic	Card Guides
EDAC Inc. 345-114-542-208	Gold	0.1 in	57 114	-40 °C	105 °C	Copper Alloy	Wire Wrap	0.054 in	0.07 in	Dual Edge Non Specified	2	Dual	Cantilever	Through Hole	10 Ąin	Female		4-40 Flush Mount Threaded Insert Top Opening	Green	2 rows	Polyester Thermoplastic
EDAC Inc. 345-114-540-807	Gold	0.1 in	57 114	-40 °C	105 °C	Copper Alloy	Wire Wrap	0.054 in	0.07 in	Dual Edge Non Specified	2	Dual	Cantilever	Through Hole	10 Ąin	Female		M3 Threaded Insert Top Mount Opening	Green	2 rows	Polyester Thermoplastic
