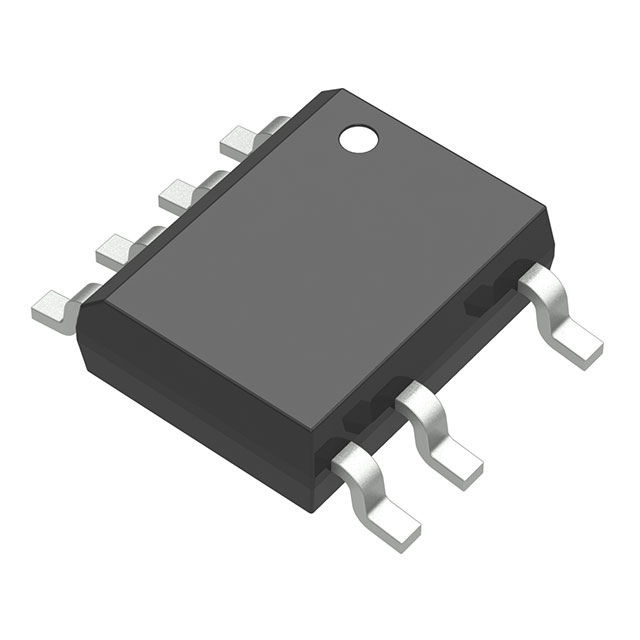

HFC0300HS-LF

Active

Monolithic Power Systems Inc.

IC REG CTRLR PWM 7SOIC

Search across all available documentation for this part.

Active

Monolithic Power Systems Inc.

IC REG CTRLR PWM 7SOIC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HFC0300HS-LF	HFC0300 Series

Control Features	Frequency Control	Frequency Control
Fault Protection	Over Temperature, Over Load, Over Voltage, Short Circuit	Over Temperature, Over Load, Over Voltage, Short Circuit
Internal Switch(s)	False	False
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	125 ¯C	125 ¯C
Operating Temperature [Min]	-40 °C	-40 °C
Output Isolation	Isolated	Isolated
Package / Case	8-SOIC	8-SOIC
Package / Case	0.154 in	0.154 in
Package / Case [custom]	7	7
Package / Case [custom]	3.9 mm	3.9 mm
Topology	Flyback	Flyback
Voltage - Breakdown	700 V	700 V
Voltage - Start Up	11.7 V	11.7 V
Voltage - Supply (Vcc/Vdd) [Max]	20 V	20 V
Voltage - Supply (Vcc/Vdd) [Min]	8.2 V	8.2 V

IC REG CTRLR PWM 7SOIC

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Fault Protection	Control Features	Voltage - Start Up	Topology	Package / Case [custom]	Package / Case	Package / Case [custom]	Package / Case	Output Isolation	Voltage - Breakdown	Internal Switch(s)
Monolithic Power Systems Inc. HFC0300HS-LF	Surface Mount	-40 °C	125 ¯C	8.2 V	20 V	Over Load, Over Temperature, Over Voltage, Short Circuit	Frequency Control	11.7 V	Flyback	7	8-SOIC	3.9 mm	0.154 in	Isolated	700 V
Monolithic Power Systems Inc. HFC0300HS-LF-Z	Surface Mount	-40 °C	125 ¯C	8.2 V	20 V	Over Load, Over Temperature, Over Voltage, Short Circuit	Frequency Control	11.7 V	Flyback	7	8-SOIC	3.9 mm	0.154 in	Isolated	700 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Converter Offline Flyback Topology 8-SOIC-7A
