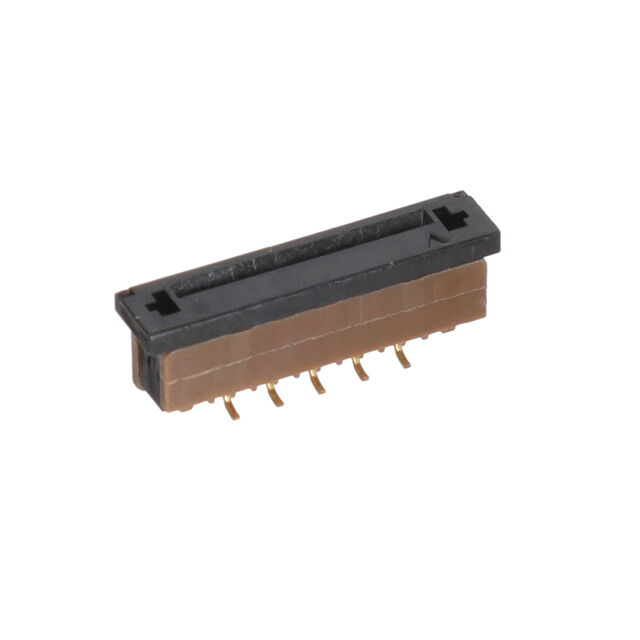

SFW10S-2STAE1LF

Active

Amphenol ICC (FCI)

CONN FPC VERT 10POS 1MM SMD

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN FPC VERT 10POS 1MM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	SFW10S-2STAE1LF

Actuator Material	Thermoplastic, Glass Filled
Connector/Contact Type	Contacts, Vertical - 1 Sided
Contact Finish	Gold
Contact Material	Phosphor Bronze
FFC, FCB Thickness	0.33 mm
Flat Flex Type	FPC
Height Above Board	5.3 mm
Height Above Board	0.209 in
Housing Color	Brown
Housing Material	Thermoplastic, Glass Filled
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount
Number of Positions	10
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination	Solder
Voltage Rating	100 V

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Contact Finish	Housing Material	Number of Positions	Contact Material	FFC, FCB Thickness	Connector/Contact Type	Material Flammability Rating	Flat Flex Type	Height Above Board	Height Above Board	Mating Cycles	Actuator Material	Housing Color	Termination	Voltage Rating	Locking Feature	Cable End Type	Actuator Color	FFC, FCB Thickness [z]	Features
Amphenol ICC (FCI) SFW10S-2STAE1LF	Surface Mount	85 °C	-55 °C	0.039 in	1 mm	Gold	Thermoplastic Glass Filled	10	Phosphor Bronze	0.33 mm	Contacts Vertical - 1 Sided	UL94 V-0	FPC	5.3 mm	0.209 in	20	Thermoplastic Glass Filled	Brown	Solder	100 V
Amphenol ICC (FCI) SFW10S-2STE1LF	Surface Mount	105 ░C	-55 °C	0.039 in	1 mm	Tin	Thermoplastic Glass Filled	10	Phosphor Bronze	0.33 mm	Contacts Vertical - 1 Sided	UL94 V-0	FFC FPC	5.3 mm	0.209 in	20	Thermoplastic Glass Filled	Brown	Solder	100 V	Slide Lock
Amphenol ICC (FCI) SFW10S-2STE9LF	Surface Mount	85 °C	-55 °C	0.039 in	1 mm	Tin	Thermoplastic Glass Filled	10	Phosphor Bronze		Contacts Vertical - 1 Sided	UL94 V-0	FFC FPC	5.3 mm	0.209 in	20	Thermoplastic Glass Filled	Brown	Solder	100 V	Slide Lock	Straight Tapered	Black	0.3 mm 0.33 mm
Amphenol ICC (FCI) SFW10S-2STME9LF	Surface Mount	85 °C	-55 °C	0.039 in	1 mm	Tin	Thermoplastic Glass Filled	10	Phosphor Bronze		Contacts Vertical - 1 Sided	UL94 V-0	FFC FPC	5.3 mm	0.209 in	20	Thermoplastic Glass Filled	Brown	Solder	100 V	Slide Lock	Straight Tapered	Black	0.3 mm 0.33 mm	Solder Retention Zero Insertion Force (ZIF)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position FPC Connector Contacts, Vertical - 1 Sided 0.039" (1.00mm) Surface Mount
