43-01197

Active

Amphenol CONEC

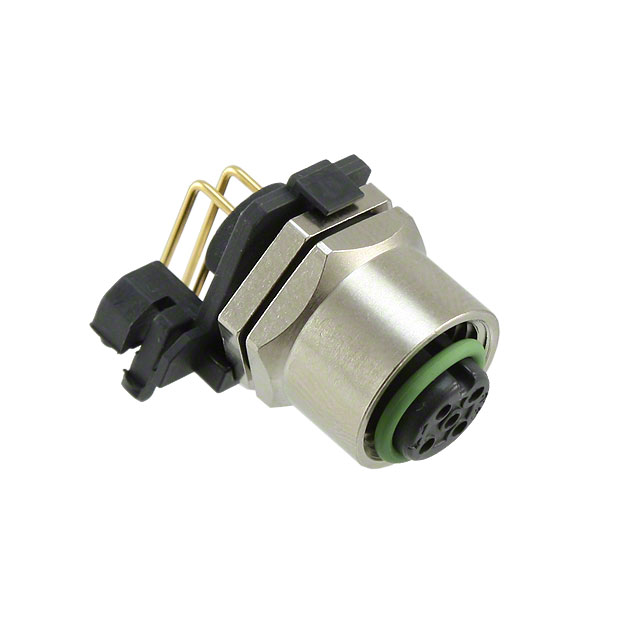

SENSOR CONN, M12, R/A RCPT, 4POS, PANEL ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

43-01197

Active

Amphenol CONEC

SENSOR CONN, M12, R/A RCPT, 4POS, PANEL ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	43-01197

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Zinc
Current Rating (Amps)	4 A
Features	Board Guide, Board Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Zinc
Shell Size - Insert	M12-4
Shielding	Shielded
Termination	Solder
Voltage Rating	250 VDC

43-0119 Series

Part	Voltage Rating	Insert Material	Orientation	Mounting Type	Connector Type	Contact Finish - Mating	Termination	Current Rating (Amps)	Primary Material	Shell Size - Insert	Shielding	Color	Mounting Feature	Contact Material	Ingress Protection	Material Flammability Rating	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Features	Number of Positions
Amphenol CONEC 43-01192	60 VDC	Polyamide (PA66) Nylon 6/6	A	Panel Mount Through Hole	Male Pins Receptacle	Gold	Solder	4 A	Metal	M12-5	Unshielded	Silver	Bulkhead - Front Side Nut	Copper Zinc	IP67 - Dust Tight Waterproof	UL94 V-0	Copper Zinc	-30 ░C	85 °C	Nickel	Board Guide
Amphenol CONEC 43-01198	60 VDC	Polyamide (PA) Nylon Glass Filled	A	Panel Mount Right Angle Through Hole	Female Sockets Plug	Gold	Solder	4 A	Metal	M12-5	Unshielded	Silver	Bulkhead	Copper Zinc	IP67 - Dust Tight Waterproof	UL94 V-0	Copper Zinc	-30 ░C	85 °C	Nickel	Board Guide Board Lock
Amphenol CONEC 43-01197	250 VDC	Polyamide (PA) Nylon Glass Filled	A	Panel Mount Right Angle Through Hole	Female Sockets Plug	Gold	Solder	4 A	Metal	M12-4	Shielded	Silver	Bulkhead	Copper Zinc	IP67 - Dust Tight Waterproof	UL94 V-0	Copper Zinc	-30 ░C	85 °C	Nickel	Board Guide Board Lock	4
Amphenol CONEC 43-01196	250 VDC	Polyamide (PA) Nylon Glass Filled	A	Panel Mount Right Angle Through Hole	Female Sockets Plug	Gold	Solder	4 A	Metal	M12-4	Unshielded	Silver	Bulkhead	Copper Zinc	IP67 - Dust Tight Waterproof	UL94 V-0	Copper Zinc	-30 ░C	85 °C	Nickel	Board Guide Board Lock	4
Amphenol CONEC 43-01190	250 VDC	Polyamide (PA66) Nylon 6/6	A	Panel Mount Through Hole	Male Pins Receptacle	Gold	Solder	4 A	Metal	M12-4	Unshielded	Silver	Bulkhead - Front Side Nut	Copper Zinc	IP67 - Dust Tight Waterproof	UL94 V-0	Copper Zinc	-30 ░C	85 °C	Nickel	Board Guide	4
Amphenol CONEC 43-01191	250 VDC	Polyamide (PA66) Nylon 6/6	A	Panel Mount Through Hole	Male Pins Receptacle	Gold	Solder	4 A	Metal	M12-4	Shielded	Silver	Bulkhead - Front Side Nut	Copper Zinc	IP67 - Dust Tight Waterproof	UL94 V-0	Copper Zinc	-30 ░C	85 °C	Nickel	Board Guide	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.27
		10	$ 9.98
		25	$ 9.60
		50	$ 9.22
		100	$ 8.71
		250	$ 7.94
		500	$ 7.43
		1000	$ 6.81
Newark	Each	1	$ 8.15
		10	$ 7.49
		25	$ 6.94
		50	$ 6.43
		100	$ 6.02
		250	$ 5.66
		500	$ 5.33

Description

General part information

43-0119 Series

4 Position Circular Connector Plug, Female Sockets Solder
