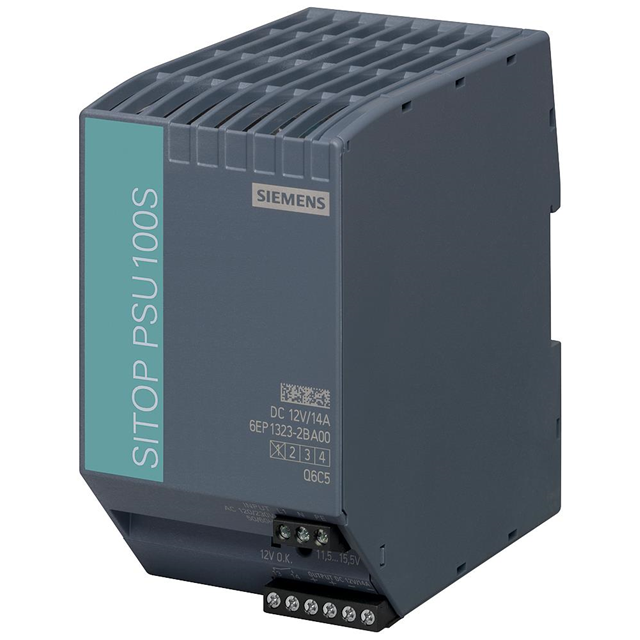

6EP13232BA00 - MFG_6EP13232BA00

6EP13232BA00

Active
Siemens

AC/DC DIN RAIL SUPPLY 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPower Supplies Selection GuidePower Supplies Brochure+2
6EP13232BA00 - MFG_6EP13232BA00

6EP13232BA00

Active
Siemens

AC/DC DIN RAIL SUPPLY 12V

Deep-Dive with AI

DocumentsPower Supplies Selection GuidePower Supplies Brochure+2

Technical Specifications

Parameters and characteristics for this part

Specification6EP13232BA00
AC Voltage - Input [Max]132 VAC, 264 VAC
AC Voltage - Input [Min]170 VAC, 85 VAC
ApplicationsIndustrial, ITE (Commercial)
Approval AgencycCSAus, CE, cULus, UL
Current - Output (Max) [Max]14 A
Efficiency87 %
FeaturesAdjustable Output, IP20
Input TypeAC
Number of Outputs1
Operating Temperature [Max]70 °C
Operating Temperature [Min]-25 °C
Size / Dimension [x]120 mm
Size / Dimension [x]4.72 in
Size / Dimension [y]2.76 in
Size / Dimension [y]70 mm
Size / Dimension [z]125 mm
Size / Dimension [z]4.92 in
Standard Number60950-1, UL 508
Voltage - Output 112 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBox 1$ 376.83

Description

General part information

6EP13232 Series

AC/DC DIN RAIL SUPPLY 12V
