IPL60R065C7AUMA1

Active

Infineon Technologies

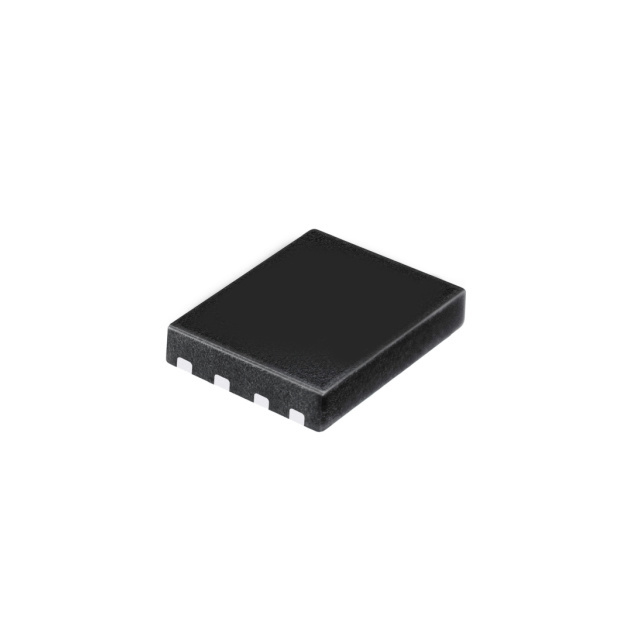

COOLMOS™ C7 N-CHANNEL SUPERJUNCTION MOSFET 600 V ; THINPAK 8X8 PACKAGE; 65 MOHM; HIGHEST PERFORMANCE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

IPL60R065C7AUMA1

Active

Infineon Technologies

COOLMOS™ C7 N-CHANNEL SUPERJUNCTION MOSFET 600 V ; THINPAK 8X8 PACKAGE; 65 MOHM; HIGHEST PERFORMANCE

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IPL60R065C7AUMA1

Current - Continuous Drain (Id) @ 25°C	29 A
Drain to Source Voltage (Vdss)	600 V
Drive Voltage (Max Rds On, Min Rds On)	10 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs [Max]	68 nC
Input Capacitance (Ciss) (Max) @ Vds	2850 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	4-PowerTSFN
Power Dissipation (Max)	180 W
Rds On (Max) @ Id, Vgs	65 mOhm
Supplier Device Package	PG-VSON-4-1
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	4 V

IPL60R065 Series

Part	Technology	Vgs (Max)	Vgs(th) (Max) @ Id	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	FET Type	Input Capacitance (Ciss) (Max) @ Vds [Max]	Supplier Device Package	Rds On (Max) @ Id, Vgs	Drive Voltage (Max Rds On, Min Rds On)	Drain to Source Voltage (Vdss)	Current - Continuous Drain (Id) @ 25°C	Power Dissipation (Max)	Mounting Type	Input Capacitance (Ciss) (Max) @ Vds	Gate Charge (Qg) (Max) @ Vgs [Max]
Infineon Technologies IPL60R065P7AUMA1	MOSFET (Metal Oxide)	20 V	4 V	150 °C	-40 °C	4-PowerTSFN	N-Channel	2895 pF	PG-VSON-4	65 mOhm	10 V	600 V	41 A	201 W	Surface Mount
Infineon Technologies IPL60R065C7AUMA1	MOSFET (Metal Oxide)	20 V	4 V	150 °C	-40 °C	4-PowerTSFN	N-Channel		PG-VSON-4-1	65 mOhm	10 V	600 V	29 A	180 W	Surface Mount	2850 pF	68 nC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 7.96
		10	$ 5.42
		100	$ 3.98
		500	$ 3.51
	Digi-Reel®	1	$ 7.96
		10	$ 5.42
		100	$ 3.98
		500	$ 3.51
	Tape & Reel (TR)	3000	$ 3.51
Newark	Each (Supplied on Cut Tape)	1	$ 5.54
		10	$ 4.39
		25	$ 4.33
		50	$ 4.00
		100	$ 3.67
		250	$ 3.58
		500	$ 3.47

Description

General part information

IPL60R065 Series
