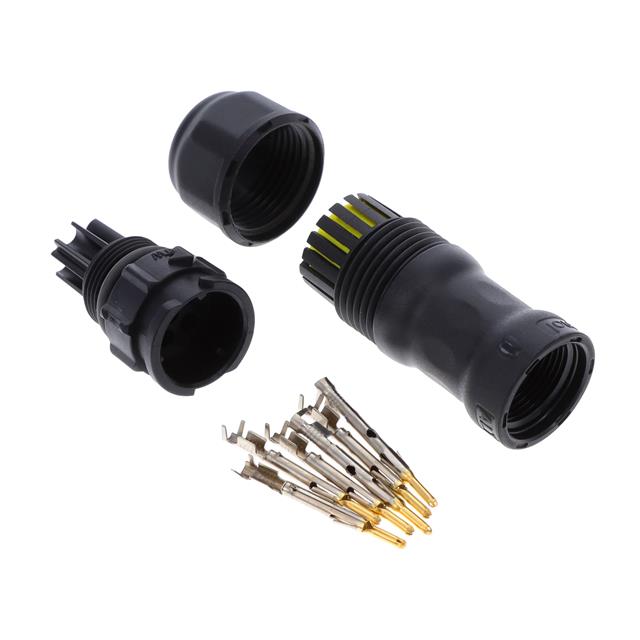

CB-06BMMA-QL8MP0

Active

Amphenol LTW

X-LOK, MIDDLE SIZE, 10A, 06 PINS

Search across all available documentation for this part.

Active

Amphenol LTW

X-LOK, MIDDLE SIZE, 10A, 06 PINS

Technical Specifications

Parameters and characteristics for this part

Specification	CB-06BMMA-QL8MP0

Cable Opening [Max] [custom]	0.394 in
Cable Opening [Max] [custom]	10 mm
Cable Opening [Min] [custom]	8 mm
Cable Opening [Min] [custom]	0.315 in
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	C
Shielding	Unshielded
Termination	Screw
Voltage Rating	300 VAC

Part	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Shell Size - Insert	Primary Material	Current Rating (Amps)	Termination	Color	Shell Material	Mounting Type	Orientation	Fastening Type	Ingress Protection	Voltage Rating	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Shielding	Features	Contact Finish - Mating	Number of Positions	Material Flammability Rating	Contact Material	Cable Opening [custom]	Cable Opening [custom]
Amphenol LTW CB-06BMMA-QL8MP0	0.394 in	8 mm	10 mm	0.315 in	C	Plastic	10 A	Screw	Black	Glass Filled Nylon Polyamide (PA)	Free Hanging (In-Line)	Keyed	Push-Pull	IP68 - Dust Tight Waterproof	300 VAC	Male Pins Plug	-40 °C	105 ░C	Polyamide (PA) Nylon Glass Filled	Unshielded	Backshell	Gold	6	UL94 V-0	Copper Alloy
Amphenol LTW CB-06BMMA-QL8LP0					C	Plastic	10 A	Crimp	Black	Glass Filled Nylon Polyamide (PA)	Free Hanging (In-Line)	Keyed	Push-Pull	IP68 - Dust Tight Waterproof	300 VAC	Male Pins Plug	-40 °C	105 ░C	Polyamide (PA) Nylon Glass Filled	Unshielded	Backshell	Gold	6	UL94 V-0	Copper Alloy	10 mm 12 mm	0.394 in 0.472 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 (Data) Position Circular Connector Plug, Male Pins Screw
