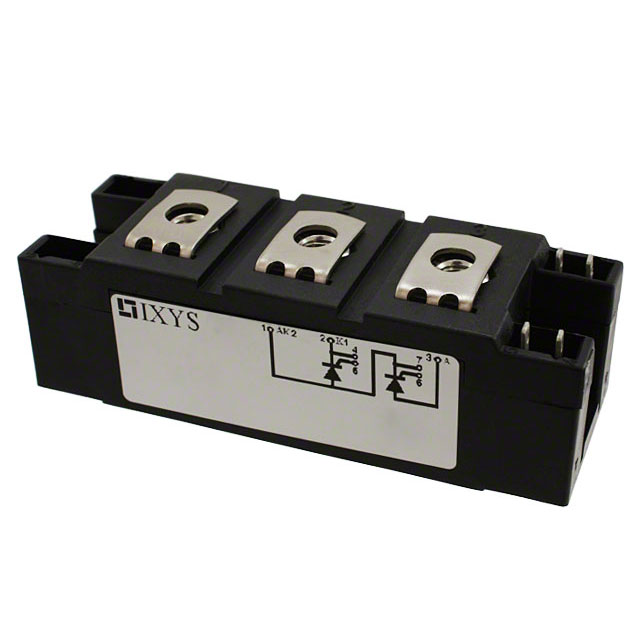

MCC200-18IO1

Active

IXYS

MOD THYRISTOR DUAL 1800V Y4-M6

Search across all available documentation for this part.

Active

IXYS

MOD THYRISTOR DUAL 1800V Y4-M6

Technical Specifications

Parameters and characteristics for this part

Specification	MCC200-18IO1

Current - Gate Trigger (Igt) (Max) [Max]	150 mA
Current - Hold (Ih) (Max) [Max]	150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	8600 A, 8000 A
Current - On State (It (AV)) (Max) [Max]	216 A
Current - On State (It (RMS)) (Max) [Max]	340 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes	2 SCRs
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	Y4-M6
Structure	Series Connection - All SCRs
Voltage - Gate Trigger (Vgt) (Max) [Max]	2 V
Voltage - Off State	1.8 kV

Part	Mounting Type	Current - Non Rep. Surge 50, 60Hz (Itsm)	Current - On State (It (AV)) (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Current - On State (It (RMS)) (Max) [Max]	Voltage - Off State	Voltage - Gate Trigger (Vgt) (Max) [Max]	Package / Case	Current - Gate Trigger (Igt) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Number of SCRs, Diodes	Structure
IXYS MCC200-14IO1	Chassis Mount	8000 A 8600 A	216 A	150 mA	340 A	1.4 kV	2 V	Y4-M6	150 mA	-40 °C	125 ¯C	2 SCRs	Series Connection - All SCRs
IXYS MCC200-18IO1	Chassis Mount	8000 A 8600 A	216 A	150 mA	340 A	1.8 kV	2 V	Y4-M6	150 mA	-40 °C	125 ¯C	2 SCRs	Series Connection - All SCRs
IXYS MCC200-16IO1	Chassis Mount	8000 A 8600 A	216 A	150 mA	340 A	1.6 kV	2 V	Y4-M6	150 mA	-40 °C	125 ¯C	2 SCRs	Series Connection - All SCRs
