Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A7VWB-0910G | A7VWB Series |
|---|---|---|
| 1st Connector | Receptacle, Female Sockets | Receptacle, Female Sockets |
| 2nd Connector | Plug, Male Pins | Plug, Male Pins |
| Color | - | Ribbon, Multiple |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Length | 10 ft | 6 - 10 ft |
| Length | 3.05 m | 1.83 - 3.05 m |
| Number of Positions | 9 | 9 - 37 |
| Shielding | Unshielded | Unshielded |
| Type | DB9 | DB9, DB37, DB25, DB15 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 26.04 | |
| 10 | $ 21.58 | |||
| 25 | $ 20.03 | |||
| 50 | $ 18.93 | |||
| 100 | $ 17.90 | |||
| 250 | $ 16.63 | |||
| 500 | $ 15.85 | |||
A7VWB Series
CABLE D-SUB-AMU09B/AE09G/AFU09B
| Part | Contact Finish | Shielding | Type | Length | Length | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | 1st Connector | 2nd Connector | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A7VWB-0906G | Gold | Unshielded | DB9 | 6 ft | 1.83 m | 0.76 Ám | 30 Áin | 9 | Female Sockets, Receptacle | Plug, Male Pins | |
TE Connectivity AMP Connectors A7VWB-3706G | Gold | Unshielded | DB37 | 6 ft | 1.83 m | 0.76 Ám | 30 Áin | 37 | Female Sockets, Receptacle | Plug, Male Pins | |
TE Connectivity AMP Connectors A7VWB-3706M | Gold | Unshielded | DB37 | 6 ft | 1.83 m | 0.76 Ám | 30 Áin | 37 | Female Sockets, Receptacle | Plug, Male Pins | Multiple, Ribbon |
TE Connectivity AMP Connectors A7VWB-0910M | Gold | Unshielded | DB9 | 10 ft | 3.05 m | 0.76 Ám | 30 Áin | 9 | Female Sockets, Receptacle | Plug, Male Pins | Multiple, Ribbon |
TE Connectivity AMP Connectors A7VWB-2510G | Gold | Unshielded | DB25 | 10 ft | 3.05 m | 0.76 Ám | 30 Áin | Female Sockets, Receptacle | Plug, Male Pins | ||
TE Connectivity AMP Connectors A7VWB-0906M | Gold | Unshielded | DB9 | 6 ft | 1.83 m | 0.76 Ám | 30 Áin | 9 | Female Sockets, Receptacle | Plug, Male Pins | Multiple, Ribbon |
TE Connectivity AMP Connectors A7VWB-0910G | Gold | Unshielded | DB9 | 10 ft | 3.05 m | 0.76 Ám | 30 Áin | 9 | Female Sockets, Receptacle | Plug, Male Pins | |
TE Connectivity AMP Connectors A7VWB-1506M | Gold | Unshielded | DB15 | 6 ft | 1.83 m | 0.76 Ám | 30 Áin | 15 | Female Sockets, Receptacle | Plug, Male Pins | Multiple, Ribbon |
TE Connectivity AMP Connectors A7VWB-1510G | Gold | Unshielded | DB15 | 10 ft | 3.05 m | 0.76 Ám | 30 Áin | 15 | Female Sockets, Receptacle | Plug, Male Pins |
Description
General part information
A7VWB Series

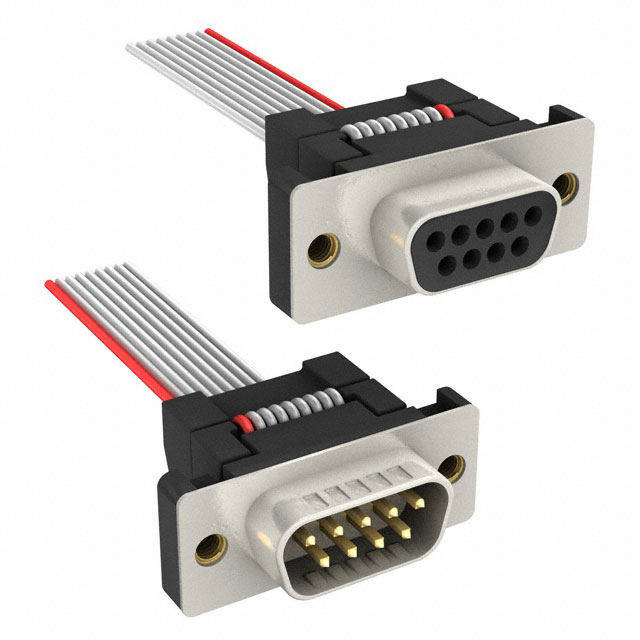

D-Sub Cable Assembly DB9 Gray, Ribbon 10.00' (3.05m) Receptacle, Female Sockets to Plug, Male Pins Unshielded
