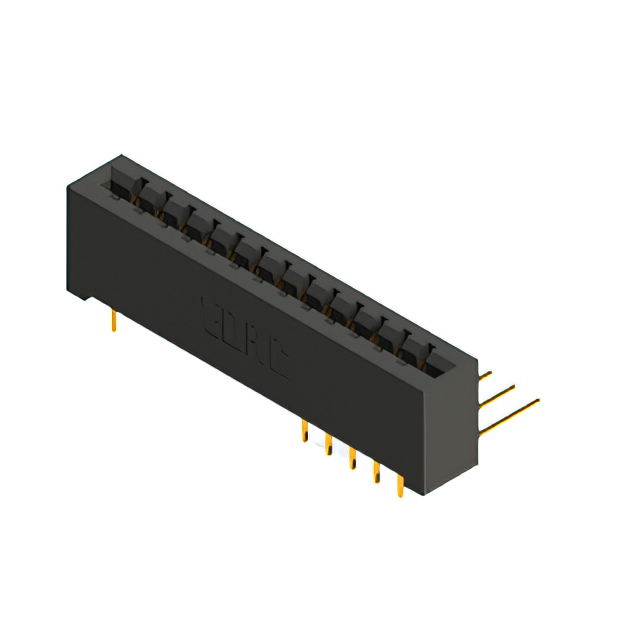

887-026-558-201

Active

EDAC Inc.

STANDARD CARD EDGE CONNECTORS HIGH TEMP CARD EDGE CONNECTOR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

887-026-558-201

Active

EDAC Inc.

STANDARD CARD EDGE CONNECTORS HIGH TEMP CARD EDGE CONNECTOR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	887-026-558-201

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole, Right Angle
Number of Positions	26
Number of Positions/Bay/Row [custom]	13
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

887-026 Series

...

Part	Read Out	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Material - Insulation	Contact Material	Card Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions/Bay/Row [custom]	Gender	Number of Positions	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Color	Contact Type	Termination Rows	Number of Rows	Termination	Flange Feature	Flange Feature
EDAC Inc. 887-026-521-212	Dual	Through Hole	125 °C	-40 °C	0.156 in	3.96 mm	10 Áin	0.25 Ám	Gold	Polyphenylene Sulfide (PPS)	Copper Alloy	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	13	Female	26	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Black	Cantilever	2	2	Solder
EDAC Inc. 887-026-542-207	Dual	Through Hole	125 °C	-40 °C	0.156 in	3.96 mm	10 Áin	0.25 Ám	Gold	Polyphenylene Sulfide (PPS)	Copper Alloy	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	13	Female	26		Flush Mount M3 Threaded Insert Top Opening		Black	Cantilever	2	2	Wire Wrap
EDAC Inc. 887-026-542-107	Single	Through Hole	125 °C	-40 °C	0.156 in	3.96 mm	10 Áin	0.25 Ám	Gold	Polyphenylene Sulfide (PPS)	Copper Alloy	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	26	Female	26		Flush Mount M3 Threaded Insert Top Opening		Black	Cantilever	1	1	Wire Wrap
EDAC Inc. 887-026-558-201	Dual	Through Hole Right Angle	125 °C	-40 °C	0.156 in	3.96 mm	10 Áin	0.25 Ám	Gold	Polyphenylene Sulfide (PPS)	Copper Alloy	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	13	Female	26				Black	Cantilever	2	2	Solder
EDAC Inc. 887-026-520-207	Dual	Through Hole	125 °C	-40 °C	0.156 in	3.96 mm	10 Áin	0.25 Ám	Gold	Polyphenylene Sulfide (PPS)	Copper Alloy	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	13	Female	26		Flush Mount M3 Threaded Insert Top Opening		Black	Cantilever	2	2	Solder
EDAC Inc. 887-026-500-804	Dual	Through Hole	125 °C	-40 °C	0.156 in	3.96 mm	10 Áin	0.25 Ám	Gold	Polyphenylene Sulfide (PPS)	Copper Alloy	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	13	Female	26	3.96 mm	Top Mount Opening Unthreaded	0.156 in	Black	Cantilever	2	2	Solder Eyelet(s)
EDAC Inc. 887-026-521-602	Single	Through Hole	125 °C	-40 °C	0.156 in	3.96 mm	10 Áin	0.25 Ám	Gold	Polyphenylene Sulfide (PPS)	Copper Alloy	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	26	Female	26				Black	Cantilever	1	1	Solder	3.25 mm	0.128 in
EDAC Inc. 887-026-500-802	Dual	Through Hole	125 °C	-40 °C	0.156 in	3.96 mm	10 Áin	0.25 Ám	Gold	Polyphenylene Sulfide (PPS)	Copper Alloy	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	13	Female	26				Black	Cantilever	2	2	Solder Eyelet(s)	3.25 mm	0.128 in
EDAC Inc. 887-026-544-812	Dual	Through Hole	125 °C	-40 °C	0.156 in	3.96 mm	10 Áin	0.25 Ám	Gold	Polyphenylene Sulfide (PPS)	Copper Alloy	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	13	Female	26		Side Mount Opening Unthreaded		Black	Cantilever	2	2	Wire Wrap	3.25 mm	0.128 in
EDAC Inc. 887-026-520-812	Dual	Through Hole	125 °C	-40 °C	0.156 in	3.96 mm	10 Áin	0.25 Ám	Gold	Polyphenylene Sulfide (PPS)	Copper Alloy	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	13	Female	26		Side Mount Opening Unthreaded		Black	Cantilever	2	2	Solder	3.25 mm	0.128 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 67.04

Description

General part information

887-026 Series

26 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
