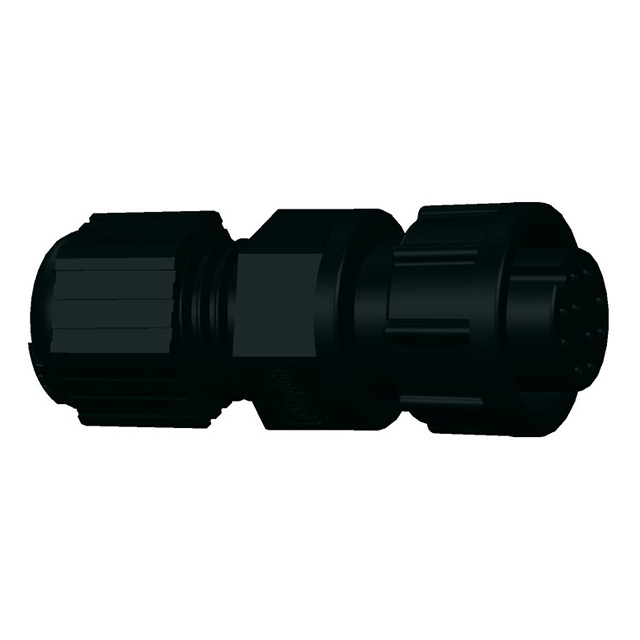

BU-10BFFA-LL7001

Active

Amphenol LTW

CONN PLUG FMALE 10P SOLDER CUP

Search across all available documentation for this part.

Active

Amphenol LTW

CONN PLUG FMALE 10P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	BU-10BFFA-LL7001

Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	2 A
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	B
Shielding	Unshielded

Part	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Orientation	Ingress Protection	Fastening Type	Current Rating (Amps)	Backshell Material, Plating	Mounting Type	Features	Shell Size - Insert	Shielding	Shell Material	Connector Type	Color	Insert Material	Number of Positions	Contact Finish - Mating
Amphenol LTW BU-10BFFA-LL7001	Copper Alloy	-40 °C	105 ░C	Plastic	Keyed	IP67 - Dust Tight Waterproof	Bayonet Lock	2 A	Nylon Polyamide (PA)	Free Hanging (In-Line)	Backshell Coupling Nut	B	Unshielded	Glass Filled Nylon Polyamide (PA)	Female Sockets Plug	Black	Polyamide (PA) Nylon Glass Filled	10	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Circular Connector Plug, Female Sockets Solder Cup
