10090096-P374VLF

Obsolete

Amphenol ICC (FCI)

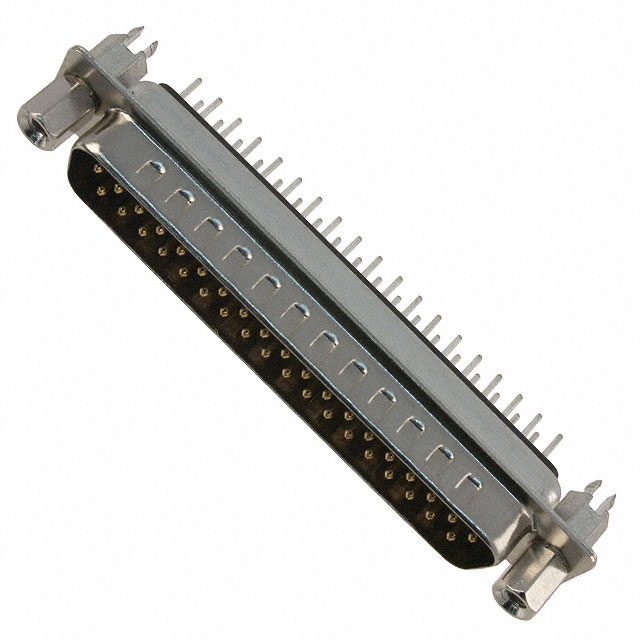

CONN D-SUB PLUG 37POS VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

10090096-P374VLF

Obsolete

Amphenol ICC (FCI)

CONN D-SUB PLUG 37POS VERT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10090096-P374VLF

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Grounding Indents, Board Lock
Flange Feature	Board Side (4-40), Mating Side, Female Screwlock (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Steel, Tin-Nickel Plated
Shell Size, Connector Layout	4 (DC, C)
Termination	Solder
Voltage Rating	250 VDC

10090096 Series

Part	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material, Finish	Color	Mounting Type	Connector Style	Features	Contact Finish	Number of Rows	Flange Feature	Termination	Current Rating (Amps)	Number of Positions	Connector Type	Contact Type	Dielectric Material	Contact Finish Thickness	Material Flammability Rating	Contact Material	Shell Size, Connector Layout	Shell Size, Connector Layout
Amphenol ICC (FCI) 10090096-P094LLF	DE E	1	250 VDC	105 ░C	-55 °C	Steel Tin-Nickel Plated	Black	Through Hole	D-Sub	Board Lock Grounding Indents	Gold	2	Board Side (M3)	Solder	5 A	9	Male Pins Plug	Signal	Thermoplastic Glass Filled	Flash
Amphenol ICC (FCI) 10090096-P254VLF	B DB	3	250 VDC	105 ░C	-55 °C	Steel Tin-Nickel Plated	Black	Through Hole	D-Sub	Board Lock Grounding Indents	Gold	2	Board Side (4-40) Mating Side Female Screwlock (4-40)	Solder	5 A		Male Pins Plug	Signal	Thermoplastic Glass Filled	Flash	UL94 V-0	Copper Alloy
Amphenol ICC (FCI) 10090096-P094XLF	DE E	1	250 VDC	105 ░C	-55 °C	Steel Tin-Nickel Plated	Black	Through Hole	D-Sub	Board Lock Grounding Indents	Gold	2	4-40 Board Side	Solder	5 A	9	Male Pins Plug	Signal	Thermoplastic Glass Filled	Flash	UL94 V-0	Copper Alloy
Amphenol ICC (FCI) 10090096-P374VLF			250 VDC	105 ░C	-55 °C	Steel Tin-Nickel Plated	Black	Through Hole	D-Sub	Board Lock Grounding Indents	Gold	2	Board Side (4-40) Mating Side Female Screwlock (4-40)	Solder	5 A	37	Male Pins Plug	Signal	Thermoplastic Glass Filled	Flash	UL94 V-0	Copper Alloy	4 (DC C)
Amphenol ICC (FCI) 10090096-P154XLF			250 VDC	105 ░C	-55 °C	Steel Tin-Nickel Plated	Black	Through Hole	D-Sub	Board Lock Grounding Indents	Gold	2	4-40 Board Side	Solder	5 A	15	Male Pins Plug	Signal	Thermoplastic Glass Filled	Flash	UL94 V-0	Copper Alloy		2
Amphenol ICC (FCI) 10090096-P154VLF			250 VDC	105 ░C	-55 °C	Steel Tin-Nickel Plated	Black	Through Hole	D-Sub	Board Lock Grounding Indents	Gold	2	Board Side (4-40) Mating Side Female Screwlock (4-40)	Solder	5 A	15	Male Pins Plug	Signal	Thermoplastic Glass Filled	Flash	UL94 V-0	Copper Alloy		2
Amphenol ICC (FCI) 10090096-P254XLF	B DB	3	250 VDC	105 ░C	-55 °C	Steel Tin-Nickel Plated	Black	Through Hole	D-Sub	Board Lock Grounding Indents	Gold	2	4-40 Board Side	Solder	5 A		Male Pins Plug	Signal	Thermoplastic Glass Filled	Flash	UL94 V-0	Copper Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

10090096 Series

37 Position D-Sub Plug, Male Pins Connector
