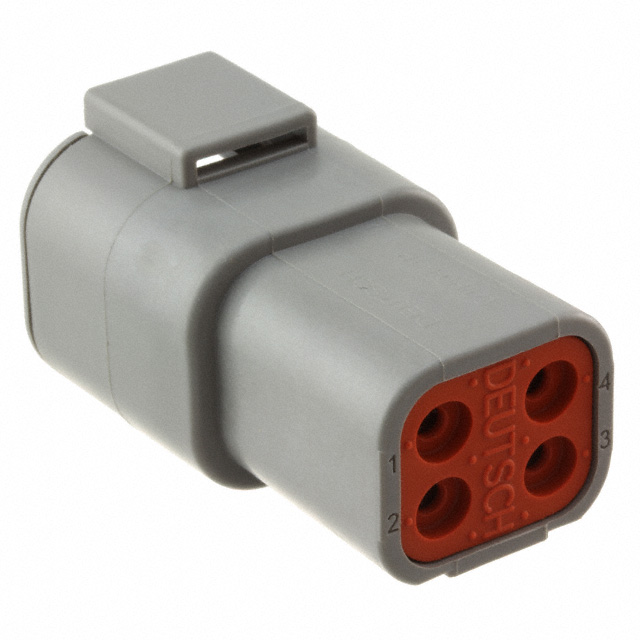

DTP04-4P-C015
ActiveTE Connectivity Raychem Cable Protection
CONN RCPT HSG 4POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DTP04-4P-C015
ActiveTE Connectivity Raychem Cable Protection
CONN RCPT HSG 4POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DTP04-4P-C015 |
|---|---|
| Color | Gray |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Features | IP68, Reduced Wire Seals, IP6K9K |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.94 | |
| 10 | $ 7.63 | |||
| 25 | $ 6.89 | |||
| 50 | $ 6.39 | |||
| 100 | $ 5.93 | |||
| 250 | $ 5.40 | |||
| 500 | $ 5.04 | |||
| 1000 | $ 4.71 | |||
Description
General part information
DTP04 Series
4 Rectangular Connectors - Housings Receptacle Gray
