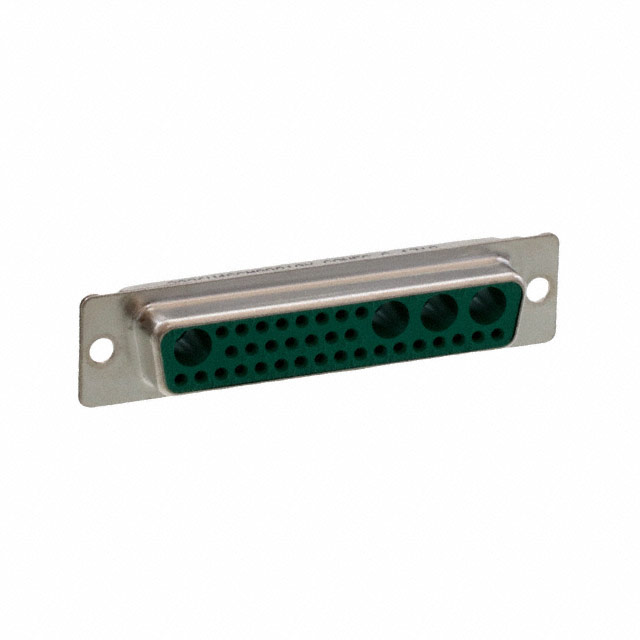

3036W4SCM99A10X

Active

Amphenol CONEC

CONN D-SUB RCPT 36POS SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

3036W4SCM99A10X

Active

Amphenol CONEC

CONN D-SUB RCPT 36POS SLDR CUP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3036W4SCM99A10X

Color	Green
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Flange Feature	Housing/Shell (Unthreaded)
Mounting Type	Free Hanging (In-Line)
Number of Positions [custom]	32 positions
Number of Positions [custom]	4
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	5 (DD, D), 36W4

3036W4S Series

Part	Flange Feature	Color	Connector Style	Termination	Current Rating (Amps)	Connector Type	Voltage Rating	Shell Size, Connector Layout	Material Flammability Rating	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions [custom]	Number of Positions [custom]	Mounting Type	Contact Material	Dielectric Material	Contact Finish	Contact Type	Contact Finish Thickness	Contact Finish Thickness
Amphenol CONEC 3036W4SAR99A10X	Housing/Shell (Unthreaded)	Green	Combo D-Sub	Solder	7.5 A	Receptacle Female Sockets	250 VDC	36W4 5 (DD D)	UL94 V-0	3	-55 °C	125 °C	32 positions	4	Through Hole	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	Gold
Amphenol CONEC 3036W4SCM41A10X	Housing/Shell (Unthreaded)	Green	Combo D-Sub			Receptacle Female Sockets		36W4 5 (DD D)		3	-55 °C	125 °C			Free Hanging (In-Line)		Polybutylene Terephthalate (PBT) Glass Filled	Gold	Signal and Power	0.76 Ám	30 Áin
Amphenol CONEC 3036W4SAR68A10X						Receptacle Female Sockets
Amphenol CONEC 3036W4SAR69A10X						Receptacle Female Sockets
Amphenol CONEC 3036W4SAR69C40X	4-40 Board Side		Combo D-Sub	Solder		Receptacle Female Sockets		36W4 5 (DD D)		3	-55 °C	125 °C			Through Hole			Gold	Signal and Power
Amphenol CONEC 3036W4SCM99A10X	Housing/Shell (Unthreaded)	Green	Combo D-Sub			Receptacle Female Sockets		36W4 5 (DD D)		3	-55 °C	125 °C	32 positions	4	Free Hanging (In-Line)			Gold		0.76 Ám	30 Áin
Amphenol CONEC 3036W4SAM99A30X		Green	Combo D-Sub		7.5 A	Receptacle Female Sockets	250 VDC	36W4 5 (DD D)	UL94 V-0	3			32 positions	4	Free Hanging (In-Line)	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 26.09

Description

General part information

3036W4S Series

36 (32 + 4 Coax or Power) Position D-Sub, Combo Receptacle, Female Sockets Connector

Documents

Technical documentation and resources

No documents available
