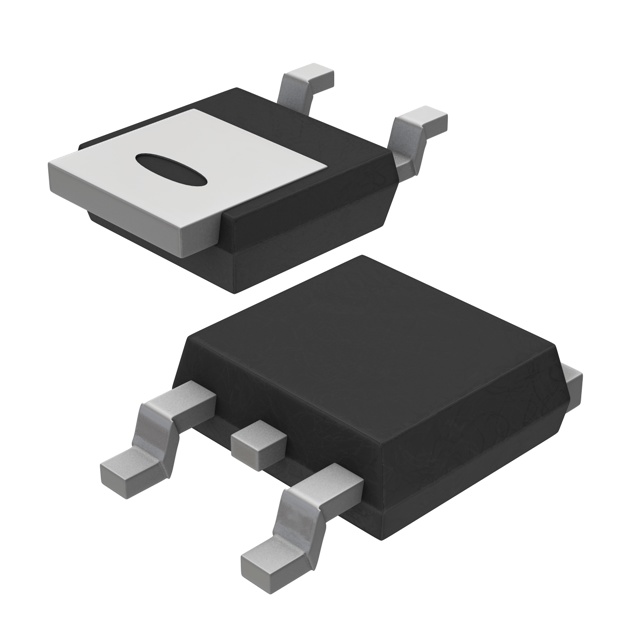

WND08P16DJ
ActiveWeEn Semiconductors
WND08P16D/TO252/REEL 13" Q1/T1 *STANDARD MARK SMD
Deep-Dive with AI
Search across all available documentation for this part.
WND08P16DJ
ActiveWeEn Semiconductors
WND08P16D/TO252/REEL 13" Q1/T1 *STANDARD MARK SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | WND08P16DJ | WND08 Series |
|---|---|---|
| Current - Average Rectified (Io) | 8 A | 8 A |
| Current - Reverse Leakage @ Vr | 50 µA | 50 µA |
| Mounting Type | Surface Mount | Through Hole, Surface Mount |
| Operating Temperature - Junction | 150 ¯C | 150 ¯C |
| Package / Case | SC-63, DPAK (2 Leads + Tab), TO-252-3 | TO-220-2 Full Pack, Isolated Tab, SC-63, DPAK (2 Leads + Tab), TO-252-3 |
| Speed | Standard Recovery >500ns | Standard Recovery >500ns |
| Speed | 200 mA | 200 mA |
| Supplier Device Package | DPAK | TO-220F, DPAK |
| Technology | Standard | Standard |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V | 1.2 - 1.25 V |
WND08 Series
STANDARD POWER DIODE 1600V 2-PIN TO-220F THROUGH HOLE TUBE
| Part | Operating Temperature - Junction | Technology | Speed | Speed | Current - Average Rectified (Io) | Package / Case | Voltage - Forward (Vf) (Max) @ If | Mounting Type | Current - Reverse Leakage @ Vr | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|
WeEn Semiconductors WND08P16XQ | 150 ¯C | Standard | Standard Recovery >500ns | 200 mA | 8 A | TO-220-2 Full Pack, Isolated Tab | 1.2 V | Through Hole | 50 µA | TO-220F |
WeEn Semiconductors WND08P16DJ | 150 ¯C | Standard | Standard Recovery >500ns | 200 mA | 8 A | DPAK (2 Leads + Tab), SC-63, TO-252-3 | 1.25 V | Surface Mount | 50 µA | DPAK |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.86 | |
| 10 | $ 0.70 | |||
| 100 | $ 0.55 | |||
| 500 | $ 0.46 | |||
| 1000 | $ 0.38 | |||
| Digi-Reel® | 1 | $ 0.86 | ||
| 10 | $ 0.70 | |||
| 100 | $ 0.55 | |||
| 500 | $ 0.46 | |||
| 1000 | $ 0.38 | |||
| Tape & Reel (TR) | 2500 | $ 0.38 | ||
| 5000 | $ 0.35 | |||
| 7500 | $ 0.33 | |||
| 12500 | $ 0.32 | |||
Description
General part information
WND08 Series
Diode 1600 V 8A Surface Mount DPAK
Documents
Technical documentation and resources
No documents available
