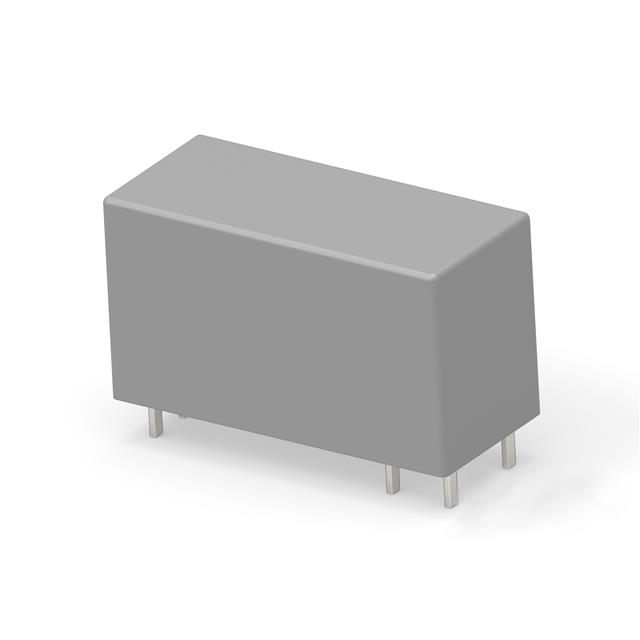

2-1415898-6
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 16A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-1415898-6
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 16A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-1415898-6 |
|---|---|
| Approval Agency | cURus, CQC, VDE, CSA |
| Coil Current | 27.1 mA |
| Coil Insulation | Class F |
| Coil Resistance | 886 Ohms |
| Coil Type | Latching, Dual Coil |
| Coil Voltage | 24 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 16 A |
| Load - Max Switching | 6400 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 16.8 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Seal Rating | Sealed - Flux Protection |
| Switching Voltage | 480 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 9.55 | |
| 10 | $ 8.34 | |||
| 25 | $ 7.90 | |||
| 50 | $ 7.59 | |||
| 100 | $ 7.29 | |||
| 250 | $ 6.90 | |||
| 500 | $ 6.63 | |||
| 1000 | $ 6.36 | |||
Description
General part information
RTS3LF Series
General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
