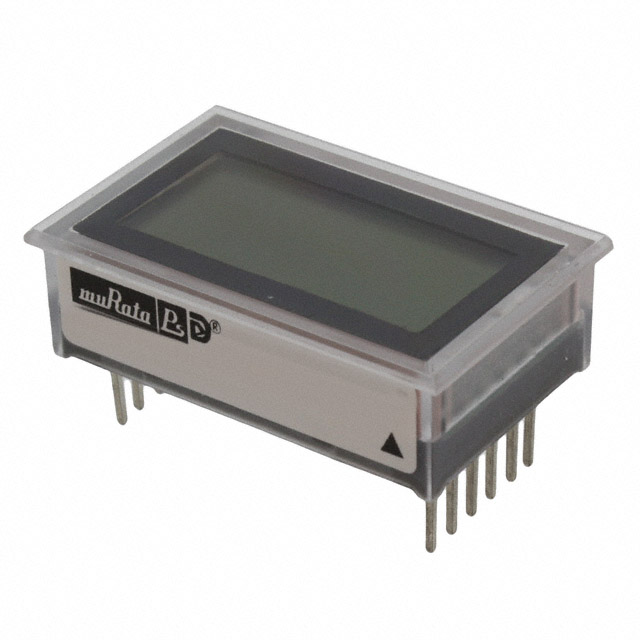

DMS-20LCD-0-5B-C

Active

Murata Power Solutions Inc.

VOLTMETER 200MVDC LCD PANEL MT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DMS-20LCD-0-5B-C

Active

Murata Power Solutions Inc.

VOLTMETER 200MVDC LCD PANEL MT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DMS-20LCD-0-5B-C	DMS-20LCD Series

	-	-
Display Characters - Height	9.4 mm	9.4 mm
Display Characters - Height	0.37 in	0.37 in
Display Type	LCD - Black Characters, Aqua Backlight	LCD - Black Characters, LCD - Black Characters, Aqua Backlight
Features	-	Bezel Sold Separately
Measuring Range [Max]	0.2 VDC	0.2 - 200 V
Measuring Range [Min]	-200 mV	-200 - 18 V
Measuring Type	Voltage	Voltage
Mounting Type	-	Panel Mount - Bezel
Number of Characters Per Row	3.5	3 - 3.5
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	0 °C	0 °C
Panel Cutout Dimensions [x]	33.93 mm	33.93 mm
Panel Cutout Dimensions [y]	21.29 mm	21.29 mm
Termination Style	PC Pin	Screw Terminal, PC Pin
Type	Voltmeter	Voltmeter
Voltage - Supply	5 V	5 - 24 V
Voltage - Supply	-	Loop Power
Weight	11.34 g	10.89 - 14.06 g
Weight	0.025 lb	0.024 - 0.031 lb

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 39.27
		5	$ 37.54
		10	$ 35.23
		25	$ 32.34
		50	$ 30.03
		100	$ 29.45

DMS-20LCD Series

VOLTMETER 200V LCD PANEL MOUNT

Part	Type	Number of Characters Per Row	Weight	Weight	Termination Style	Measuring Range [Max]	Measuring Range [Min]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Measuring Type	Mounting Type	Voltage - Supply	Display Type	Display Characters - Height	Display Characters - Height	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply
Murata Power Solutions Inc. DMS-20LCD-3-5-C	Voltmeter	3.5	0.024 lb	10.89 g	Screw Terminal	200 V	-200 V	33.93 mm	21.29 mm	Voltage	Panel Mount - Bezel	5 V	LCD - Black Characters	9.4 mm	0.37 in	60 °C	0 °C
Murata Power Solutions Inc. DMS-20LCD-2-DCM-C	Voltmeter	3	0.031 lb	14.06 g	Screw Terminal	90 VDC	18 VDC	33.93 mm	21.29 mm	Voltage	Panel Mount - Bezel		LCD - Black Characters	9.4 mm	0.37 in	60 °C	0 °C	Loop Power
Murata Power Solutions Inc. DMS-20LCD-2-5-C	Voltmeter	3.5	0.025 lb	11.34 g	PC Pin			33.93 mm	21.29 mm	Voltage		5 V	LCD - Black Characters	9.4 mm	0.37 in	60 °C	0 °C
Murata Power Solutions Inc. DMS-20LCD-0-9-C	Voltmeter	3.5	0.025 lb	11.34 g	PC Pin	0.2 VDC	-200 mV	33.93 mm	21.29 mm	Voltage		9 V	LCD - Black Characters	9.4 mm	0.37 in	60 °C	0 °C
Murata Power Solutions Inc. DMS-20LCD-0-9-C
Murata Power Solutions Inc. DMS-20LCD-1-DCM-C
Murata Power Solutions Inc. DMS-20LCD-0-9B-C	Voltmeter	3.5	0.024 lb	10.89 g	Screw Terminal	0.2 VDC	-200 mV	33.93 mm	21.29 mm	Voltage	Panel Mount - Bezel	9 V	LCD - Black Characters, Aqua Backlight	9.4 mm	0.37 in	60 °C	0 °C
Murata Power Solutions Inc. DMS-20LCD-0-5B-C	Voltmeter	3.5	0.025 lb	11.34 g	PC Pin	0.2 VDC	-200 mV	33.93 mm	21.29 mm	Voltage		5 V	LCD - Black Characters, Aqua Backlight	9.4 mm	0.37 in	60 °C	0 °C
Murata Power Solutions Inc. DMS-20LCD-3-9B-C	Voltmeter	3.5	0.024 lb	10.89 g	Screw Terminal	200 V	-200 V	33.93 mm	21.29 mm	Voltage	Panel Mount - Bezel	9 V	LCD - Black Characters, Aqua Backlight	9.4 mm	0.37 in	60 °C	0 °C
Murata Power Solutions Inc. DMS-20LCD-1-9B-C	Voltmeter	3.5	0.024 lb	10.89 g	Screw Terminal	2 V	-2 V	33.93 mm	21.29 mm	Voltage	Panel Mount - Bezel	9 V	LCD - Black Characters, Aqua Backlight	9.4 mm	0.37 in	60 °C	0 °C

Description

General part information

DMS-20LCD Series

Voltmeter LCD - Black Characters, Aqua Backlight Display Panel Mount

Documents

Technical documentation and resources
