SSM-112-T-DH

Active

Samtec Inc.

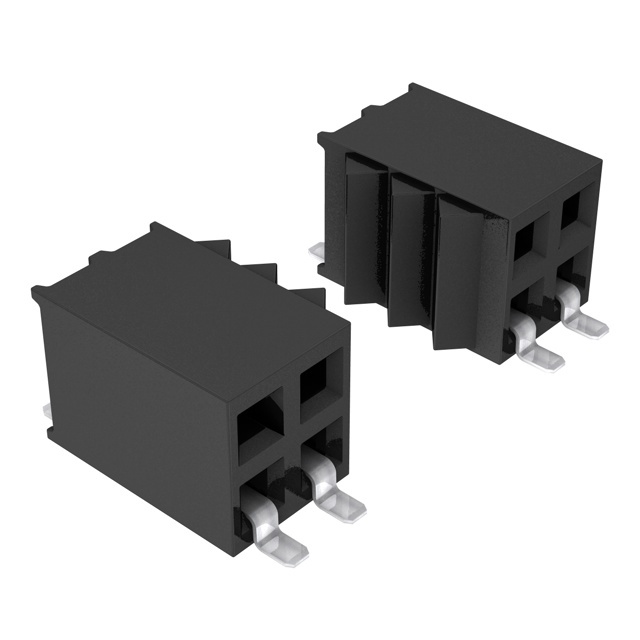

CONN RCPT 24POS 0.1 TIN SMD R/A

Deep-Dive with AI

Search across all available documentation for this part.

SSM-112-T-DH

Active

Samtec Inc.

CONN RCPT 24POS 0.1 TIN SMD R/A

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSM-112-T-DH

Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	5.2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.225 in
Insulation Height	5.72 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount, Right Angle
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	572 VDC, 405 VAC

SSM-105 Series

Headers & Wire Housings Surface Mount PCB Socket Strips, .100" pitch

...

Part	Termination	Insulation Material	Mounting Type	Fastening Type	Pitch - Mating	Pitch - Mating	Features	Insulation Height	Insulation Height	Connector Type	Contact Type	Number of Rows	Current Rating (Amps)	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Material	Insulation Color	Voltage Rating	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Contact Finish - Post	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Number of Positions Loaded
Samtec Inc. SSM-105-T-DV-K	Solder	Liquid Crystal Polymer (LCP)	Surface Mount	Push-Pull	0.1 in	2.54 mm	Pick and Place	7.37 mm	0.29 in	Pass Through Receptacle	Female Socket	2	5.2 A	10	2.54 mm	0.1 in	Phosphor Bronze	Black	405 VAC 572 VDC	Square	-55 °C	125 °C	All	Tin	Board to Board Cable
Samtec Inc. SSM-105-F-DV-A-P-TR	Solder	Liquid Crystal Polymer (LCP)	Surface Mount	Push-Pull	0.1 in	2.54 mm	Board Guide Pick and Place	7.37 mm	0.29 in	Pass Through Receptacle	Female Socket	2	5.2 A	10	2.54 mm	0.1 in	Phosphor Bronze	Black	405 VAC 572 VDC	Square	-55 °C	125 °C	All	Tin	Board to Board Cable	3 µin	0.076 µm	Gold
Samtec Inc. SSM-120-SM-DV-P	Solder	Liquid Crystal Polymer (LCP)	Surface Mount	Push-Pull	0.1 in	2.54 mm	Pick and Place	7.37 mm	0.29 in	Pass Through Receptacle	Female Socket	2	5.2 A	40	2.54 mm	0.1 in	Phosphor Bronze	Black	405 VAC 572 VDC	Square	-55 °C	125 °C	All	Tin	Board to Board Cable	30 Áin	0.76 Ám	Gold
Samtec Inc. SSM-105-T-SV-BE-P-TR	Solder	Liquid Crystal Polymer (LCP)	Surface Mount	Push-Pull	0.1 in	2.54 mm	Pick and Place	7.37 mm	0.29 in	Receptacle Bottom Entry	Female Socket	1	5.2 A				Phosphor Bronze	Black	405 VAC 572 VDC	Square	-55 °C	125 °C	All	Tin	Board to Board Cable
Samtec Inc. SSM-125-L-DH-LC	Solder	Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Push-Pull	0.1 in	2.54 mm		5.72 mm	0.225 in	Receptacle	Female Socket	2	5.2 A	50	2.54 mm	0.1 in	Phosphor Bronze	Black	405 VAC 572 VDC	Square	-55 °C	125 °C	All	Tin	Board to Board Cable	10 çin	0.25 çm	Gold
Samtec Inc. SSM-107-L-DV-004-K-TR	Solder	Liquid Crystal Polymer (LCP)	Surface Mount	Push-Pull	0.1 in	2.54 mm	Pick and Place	7.37 mm	0.29 in	Pass Through Receptacle	Female Socket	2	5.2 A	14	2.54 mm	0.1 in	Phosphor Bronze	Black	405 VAC 572 VDC	Square	-55 °C	125 °C		Tin	Board to Board Cable	10 çin	0.25 çm	Gold	13
Samtec Inc. SSM-112-S-DV-BE-P	Solder	Liquid Crystal Polymer (LCP)	Surface Mount	Push-Pull	0.1 in	2.54 mm	Pick and Place	7.37 mm	0.29 in	Receptacle Bottom Entry	Female Socket	2	5.2 A	24	2.54 mm	0.1 in	Phosphor Bronze	Black	405 VAC 572 VDC	Square	-55 °C	125 °C	All	Tin	Board to Board Cable	30 Áin	0.76 Ám	Gold
Samtec Inc. SSM-105-SM-DV-BE-A	Solder	Liquid Crystal Polymer (LCP)	Surface Mount	Push-Pull	0.1 in	2.54 mm	Board Guide	7.37 mm	0.29 in	Receptacle Bottom Entry	Female Socket	2	5.2 A	10	2.54 mm	0.1 in	Phosphor Bronze	Black	405 VAC 572 VDC	Square	-55 °C	125 °C	All	Tin	Board to Board Cable	30 Áin	0.76 Ám	Gold
Samtec Inc. SSM-112-T-DH	Solder	Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Push-Pull	0.1 in	2.54 mm		5.72 mm	0.225 in	Receptacle	Female Socket	2	5.2 A	24	2.54 mm	0.1 in	Phosphor Bronze	Black	405 VAC 572 VDC	Square	-55 °C	125 °C	All	Tin	Board to Board Cable
Samtec Inc. SSM-112-SM-DV-P-TR	Solder	Liquid Crystal Polymer (LCP)	Surface Mount	Push-Pull	0.1 in	2.54 mm	Pick and Place	7.37 mm	0.29 in	Pass Through Receptacle	Female Socket	2	5.2 A	24	2.54 mm	0.1 in	Phosphor Bronze	Black	405 VAC 572 VDC	Square	-55 °C	125 °C	All	Tin	Board to Board Cable	30 Áin	0.76 Ám	Gold
