M50-4702045

Active

Harwin Inc.

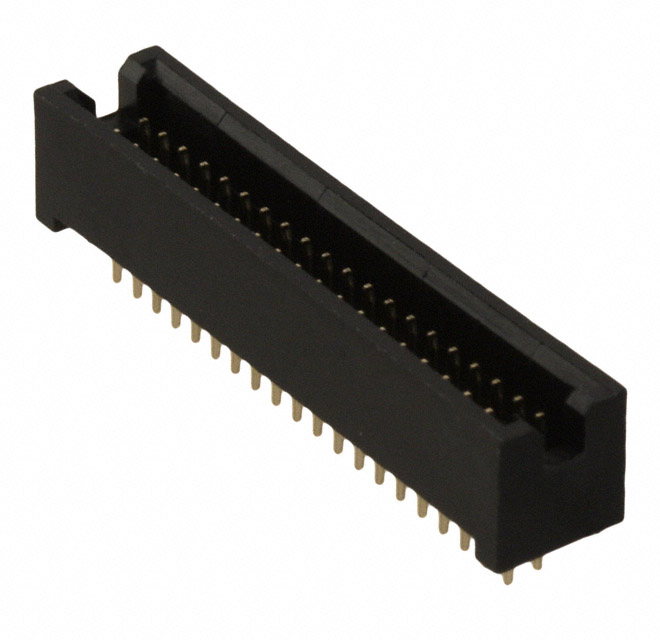

PIN HEADER, BOARD-TO-BOARD, 1.27 MM, 2 ROWS, 40 CONTACTS, THROUGH HOLE, ARCHER M50 SERIES

Search across all available documentation for this part.

Active

Harwin Inc.

PIN HEADER, BOARD-TO-BOARD, 1.27 MM, 2 ROWS, 40 CONTACTS, THROUGH HOLE, ARCHER M50 SERIES

Technical Specifications

Parameters and characteristics for this part

Specification	M50-4702045

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Length - Post	0.091 in
Contact Length - Post	2.3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	5.69 mm
Insulation Height	0.224 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mated Stacking Heights	6 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Termination	Solder

Part	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Number of Rows	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Shape	Contact Material	Connector Type	Insulation Material	Fastening Type	Current Rating (Amps)	Termination	Mated Stacking Heights	Contact Type	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Shrouding	Number of Positions	Number of Positions
Harwin Inc. M50-4700845	UL94 V-0	0.091 in	2.3 mm	Gold	2	Gold	0.05 in	1.27 mm	Black	Square	Copper Alloy	Header	Liquid Crystal Polymer (LCP)	Push-Pull	1 A	Solder	6 mm	Male Pin	5.69 mm	0.224 in	-40 °C	105 ░C	All	0.05 in	1.27 mm	Through Hole	Shrouded - 4 Wall	16
Harwin Inc. M50-4702045	UL94 V-0	0.091 in	2.3 mm	Gold	2	Gold	0.05 in	1.27 mm	Black	Square	Copper Alloy	Header	Liquid Crystal Polymer (LCP)	Push-Pull	1 A	Solder	6 mm	Male Pin	5.69 mm	0.224 in	-40 °C	105 ░C	All	0.05 in	1.27 mm	Through Hole	Shrouded - 4 Wall		40
Harwin Inc. M50-4700545	UL94 V-0	0.091 in	2.3 mm	Gold	2	Gold	0.05 in	1.27 mm	Black	Square	Copper Alloy	Header	Liquid Crystal Polymer (LCP)	Push-Pull	1 A	Solder	6 mm	Male Pin	5.69 mm	0.224 in	-40 °C	105 ░C	All	0.05 in	1.27 mm	Through Hole	Shrouded - 4 Wall		10

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1008	$ 7.82
Newark	Each	1	$ 9.70

General part information

Connector Header Through Hole 40 position 0.050" (1.27mm)
