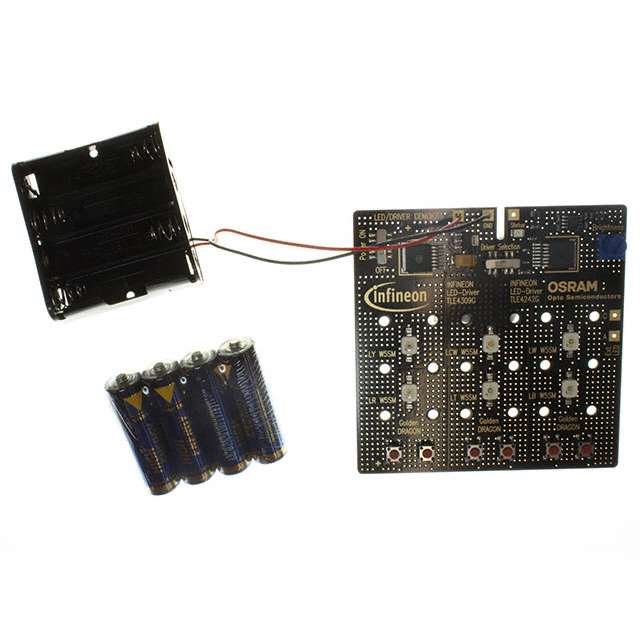

DEMOBOARDTLE4242GTOBO1

Infineon Technologies

DEMO BOARD, LINEAR LED DRIVER, PWM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Infineon Technologies

DEMO BOARD, LINEAR LED DRIVER, PWM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Supplier Device Package	Mounting Type	Type	Internal Switch(s)	Voltage - Supply (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Dimming	Voltage - Output	Current - Output / Channel	Number of Outputs	Package / Case	Voltage - Supply (Min) [Min]	Voltage - Input [Max]	Voltage - Input [Min]	Utilized IC / Part	Supplied Contents	Voltage - Output [Max]	Voltage - Output [Min]	Outputs and Type
Infineon Technologies TLE4242GATMA1	PG-TO263-7-1	Surface Mount	Linear		42 V	150 °C	-40 °C	PWM	40 V	500 mA	1	D2PAK (7 Leads + Tab) TO-263-8 TO-263CA	4.5 V
Infineon Technologies DEMOBOARDTLE4242GTOBO1										370 mA				16 V	8 V	TLE4242G	Board(s)	8 V	6 V	1 Non-Isolated Output

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 42.00
Newark	Each	1	$ 35.76

General part information

TLE4242G LITIX™ 1 Non-Isolated Output LED Driver Evaluation Board
