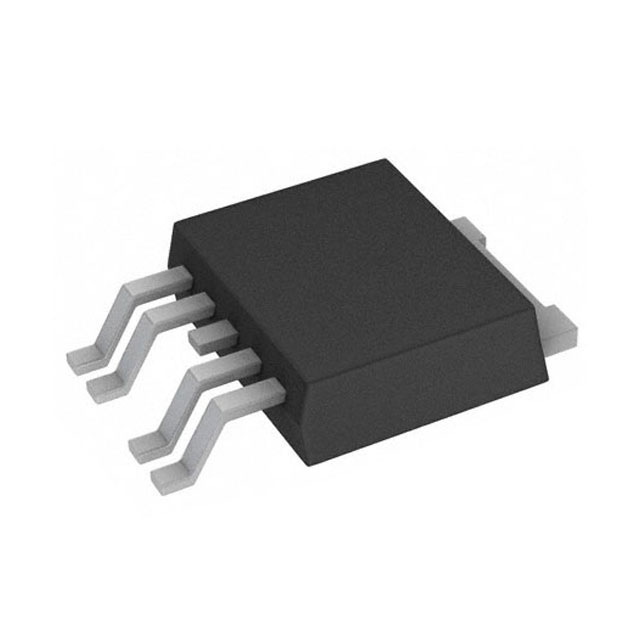

S-1212BC0-V5T2U

Active

ABLIC Inc.

VOLTAGE REGULATOR

Search across all available documentation for this part.

Active

ABLIC Inc.

VOLTAGE REGULATOR

Technical Specifications

Parameters and characteristics for this part

Specification	S-1212BC0-V5T2U

Control Features	Enable
Current - Output	250 mA
Current - Quiescent (Iq)	8.5 µA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	DPAK (4 Leads + Tab), TO-252-5, TO-252AD
Protection Features	Over Current, Over Temperature
PSRR	30 dB
Supplier Device Package	TO-252-5S
Voltage - Input (Max) [Max]	36 V
Voltage - Output (Min/Fixed)	12 V
Voltage Dropout (Max) [Max]	0.8 V

Part	Protection Features	Output Configuration	Voltage - Input (Max) [Max]	Current - Output	Current - Supply (Max) [Max]	Mounting Type	Output Type	Control Features	Number of Regulators	Supplier Device Package	Package / Case	Voltage Dropout (Max) [Max]	PSRR	Current - Quiescent (Iq)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output (Min/Fixed)
ABLIC Inc. S-1212B70-M5T1U	Over Current Thermal Shutdown	Positive	36 V	250 mA	8.5 µA	Surface Mount	1.81 mOhm	Enable	1	SOT-23-5	SC-74A SOT-753	0.8 V	35 db	3.5 µA	105 °C	-40 °C	7 V
ABLIC Inc. S-1212B80-M5T1U	Over Current Thermal Shutdown	Positive	36 V	250 mA	8.5 µA	Surface Mount	1.81 mOhm	Enable	1	SOT-23-5	SC-74A SOT-753	0.8 V	35 db	3.5 µA	105 °C	-40 °C	8 V
ABLIC Inc. S-1212B80-U5T1U	Over Current Thermal Shutdown	Positive	36 V	250 mA	8.5 µA	Surface Mount	1.81 mOhm	Enable	1	SOT-89-5	SOT-89-5/6	0.8 V	35 db	3.5 µA	105 °C	-40 °C	8 V
ABLIC Inc. S-1212B30-M5T1U	Over Current Thermal Shutdown	Positive	36 V	250 mA	8.5 µA	Surface Mount	1.81 mOhm	Enable	1	SOT-23-5	SC-74A SOT-753	0.8 V	45 dB	3.5 µA	105 °C	-40 °C
ABLIC Inc. S-1212BC0-V5T2U	Over Current Over Temperature	Positive	36 V	250 mA		Surface Mount	1.81 mOhm	Enable	1	TO-252-5S	DPAK (4 Leads + Tab) TO-252-5 TO-252AD	0.8 V	30 dB	8.5 µA	105 °C	-40 °C	12 V
ABLIC Inc. S-1212B50-M5T1U	Over Current Thermal Shutdown	Positive	36 V	250 mA	8.5 µA	Surface Mount	1.81 mOhm	Enable	1	SOT-23-5	SC-74A SOT-753	0.8 V	40 dB	3.5 µA	105 °C	-40 °C	5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear Voltage Regulator IC Positive Fixed 1 Output 250mA TO-252-5S
