6-175778-3

Active

TE Connectivity AMP Connectors

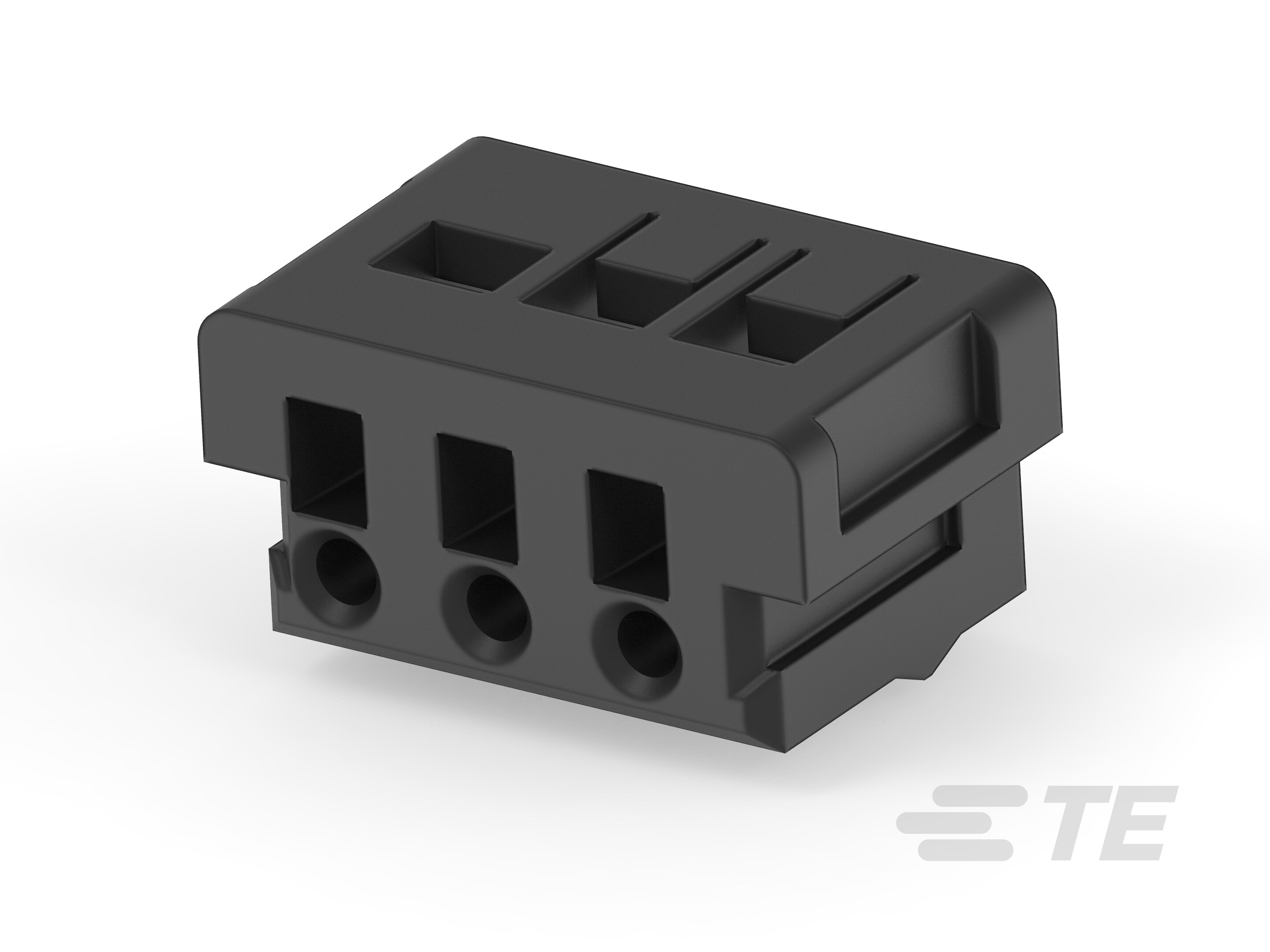

CONN RCPT HSG 3POS 2.00MM

6-175778-3

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 3POS 2.00MM

Description Specifications Series Pricing CAD Documents

Description

General part information

175778 Series

3 Position, Receptacle, Housing, Crimp, Wire-to-Board, UL 94V-0, 2 mm [.078 in] Centerline, 1 Row, 125 VAC, Wire & Cable, Power & Signal

Technical Specifications

Parameters and characteristics for this part

Specification	6-175778-3

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	3
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-30 °C
Pitch	0.079 in

175778 Series

Part	Note	Color	Connector Type	Contact Type	Number of Positions	Mounting Type	Contact Termination	Pitch	Operating Temperature (Min)	Operating Temperature (Max)	Insulation Material	Number of Rows
TE Connectivity AMP Connectors 175778-9	Contacts Not Included	Natural	Receptacle	Female Socket	9	Free Hanging (In-Line)	Crimp	0.079 in	-30 °C	105 °C	Nylon 6/6 Polyamide (PA66)	1
TE Connectivity AMP Connectors 6-175778-5	Contacts Not Included	Black	Receptacle	Female Socket	5	Free Hanging (In-Line)	Crimp	0.079 in	-30 °C	105 °C	Nylon 6/6 Polyamide (PA66)	1
TE Connectivity AMP Connectors 4-175778-9	Contacts Not Included	Yellow	Receptacle	Female Socket	9	Free Hanging (In-Line)	Crimp	0.079 in	-30 °C	105 °C	Nylon 6/6 Polyamide (PA66)	1
TE Connectivity AMP Connectors 4-175778-6	Contacts Not Included	Yellow	Receptacle	Female Socket	6	Free Hanging (In-Line)	Crimp	0.079 in	-30 °C	105 °C	Nylon 6/6 Polyamide (PA66)	1
TE Connectivity AMP Connectors 6-175778-3	Contacts Not Included	Black	Receptacle	Female Socket	3	Free Hanging (In-Line)	Crimp	0.079 in	-30 °C	105 °C	Nylon 6/6 Polyamide (PA66)	1
TE Connectivity AMP Connectors 2-175778-8	Contacts Not Included	Blue	Receptacle	Female Socket	8	Free Hanging (In-Line)	Crimp	0.079 in	-30 °C	105 °C	Nylon 6/6 Polyamide (PA66)	1
TE Connectivity AMP Connectors 2-175778-2	Contacts Not Included	Blue	Receptacle	Female Socket	2	Free Hanging (In-Line)	Crimp	0.079 in	-30 °C	105 °C	Nylon 6/6 Polyamide (PA66)	1
TE Connectivity AMP Connectors 6-175778-2	Contacts Not Included	Black	Receptacle	Female Socket	2	Free Hanging (In-Line)	Crimp	0.079 in	-30 °C	105 °C	Nylon 6/6 Polyamide (PA66)	1
