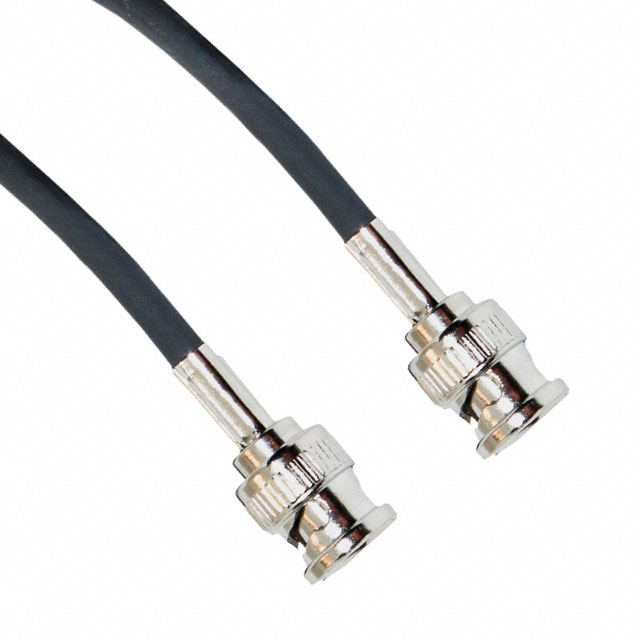

BU-P5697-600

Active

Mueller Electric Co

CBL ASSY BNC PLUG TO PLUG 50'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BU-P5697-600

Active

Mueller Electric Co

CBL ASSY BNC PLUG TO PLUG 50'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BU-P5697-600

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	BNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-58C
Color	Black
Features	Shielded
Length	50 ft
Length	15.2 m
Length	50 ft
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overall Impedance	50 Ohms
Style	BNC to BNC

BU-P5697 Series

Part	Features	1st Connector Mounting Type	Overall Impedance	2nd Connector Mounting Type	Style	Operating Temperature [Max]	Operating Temperature [Min]	Color	2nd Contact Gender	Cable Impedance	Cable Type	1st Contact Gender	1st Connector	2nd Connector	Length	Length	Length
Mueller Electric Co BU-P5697-24	Shielded	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	BNC to BNC	85 °C	-40 °C	Black	Male	50 Ohms	RG-58C	Male	BNC Plug	BNC Plug	24 "	609.6 mm
Mueller Electric Co BU-P5697-180	Shielded	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	BNC to BNC	85 °C	-40 °C	Black	Male	50 Ohms	RG-58C	Male	BNC Plug	BNC Plug	15 ft	4.6 m	5 yd
Mueller Electric Co BU-P5697-36	Shielded	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	BNC to BNC	85 °C	-40 °C	Black	Male	50 Ohms	RG-58C	Male	BNC Plug	BNC Plug	36 in	91.44 cm
Mueller Electric Co BU-P5697-120	Shielded	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	BNC to BNC	85 °C	-40 °C	Black	Male	50 Ohms	RG-58C	Male	BNC Plug	BNC Plug	10 ft	3 m	10 '
Mueller Electric Co BU-P5697-300	Shielded	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	BNC to BNC	85 °C	-40 °C	Black	Male	50 Ohms	RG-58C	Male	BNC Plug	BNC Plug	25 ft	7.6 m	25 ft
Mueller Electric Co BU-P5697-240	Shielded	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	BNC to BNC	85 °C	-40 °C	Black	Male	50 Ohms	RG-58C	Male	BNC Plug	BNC Plug	20 ft	6.1 m	20 ft
Mueller Electric Co BU-P5697-600	Shielded	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	BNC to BNC	85 °C	-40 °C	Black	Male	50 Ohms	RG-58C	Male	BNC Plug	BNC Plug	50 ft	15.2 m	50 ft
Mueller Electric Co BU-P5697-12	Shielded	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	BNC to BNC	85 °C	-40 °C	Black	Male	50 Ohms	RG-58C	Male	BNC Plug	BNC Plug	12 "	304.8 mm
Mueller Electric Co BU-P5697-60	Shielded	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	BNC to BNC	85 °C	-40 °C	Black	Male	50 Ohms	RG-58C	Male	BNC Plug	BNC Plug	5 '	1.5 m	5 ft
Mueller Electric Co BU-P5697-6	Shielded	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	BNC to BNC	85 °C	-40 °C	Black	Male	50 Ohms	RG-58C	Male	BNC Plug	BNC Plug	6 in	152.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 57.80
		10	$ 48.03
		100	$ 45.78
Newark	Each	1	$ 71.16
		25	$ 67.91
		50	$ 66.10
		100	$ 63.94
		250	$ 61.77

Description

General part information

BU-P5697 Series

Cable Assembly Coaxial BNC to BNC RG-58C 600.0" (15.2m) 50.0'

Documents

Technical documentation and resources
