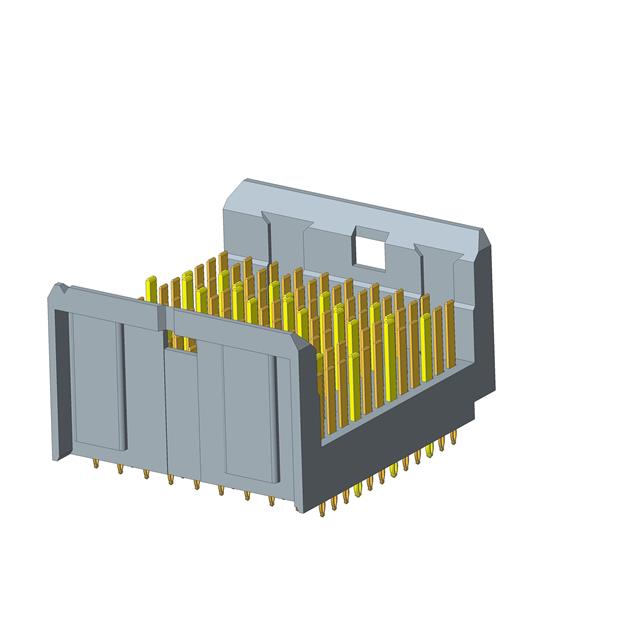

10122770-101LF

Active

Amphenol ICC (FCI)

CONN RCPT HIGH SPEED 120POS PCB

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN RCPT HIGH SPEED 120POS PCB

Technical Specifications

Parameters and characteristics for this part

Specification	10122770-101LF

Color	Black
Connector Style	High Speed
Connector Type	Receptacle, Female Sockets
Connector Usage	Daughtercard
Contact Finish	Gold
Features	Protective Cover
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Columns	10
Number of Positions	120
Number of Positions Loaded	All
Number of Rows	12
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Termination	Press-Fit

Part	Operating Temperature [Max]	Operating Temperature [Min]	Number of Columns	Connector Type	Mounting Type	Color	Termination	Material Flammability Rating	Features	Contact Finish	Connector Usage	Number of Rows	Number of Positions	Number of Positions Loaded	Connector Style	Pitch [x]	Pitch [x]
Amphenol ICC (FCI) 10122770-101LF	85 °C	-55 °C	10	Receptacle Female Sockets	Through Hole	Black	Press-Fit	UL94 V-0	Protective Cover	Gold	Daughtercard	12	120	All	High Speed
Amphenol ICC (FCI) 10122770-111LF	85 °C	-55 °C	10	Header Male Pins	Through Hole	Black	Press-Fit	UL94 V-0	Protective Cover	Gold		12	120	All	High Speed	0.055 in	1.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

120 Connector Receptacle, Female Sockets Through Hole Black High Speed
