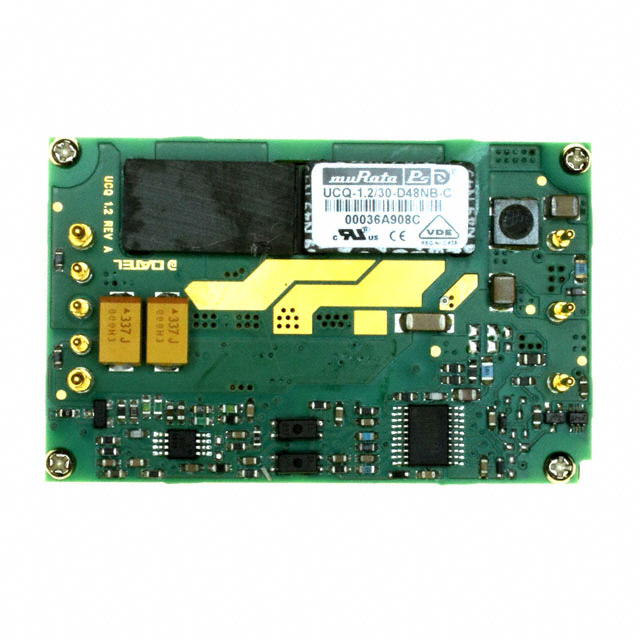

UCQ-1.2/30-D48NB-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 1.2V 36W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UCQ-1.2/30-D48NB-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 1.2V 36W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UCQ-1.2/30-D48NB-C |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 30 A |
| Efficiency | 83 % |
| Features | Remote On/Off, OVP, SCP, OTP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 1/4 Brick, 8-DIP Module |
| Power (Watts) | 36 W |
| Size / Dimension [x] | 58.4 mm |
| Size / Dimension [x] | 2.3 in |
| Size / Dimension [y] | 1.45 in |
| Size / Dimension [y] | 36.8 mm |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 2250 VDC |
| Voltage - Output 1 | 1.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
UCQ-1.2 Series
DC DC CONVERTER 1.2V 36W
| Part | Control Features | Voltage - Output 1 | Voltage - Input (Max) [Max] | Features | Power (Watts) | Applications | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Mounting Type | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Type | Voltage - Input (Min) [Min] | Number of Outputs | Package / Case | Voltage - Isolation | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. UCQ-1.2/30-D48NB-C | Active Low, Enable | 1.2 V | 75 V | OTP, OVP, Remote On/Off, SCP | 36 W | ITE (Commercial) | 1.45 in | 0.4 " | 58.4 mm | 36.8 mm | 10 mm | 2.3 in | Through Hole | 83 % | 85 °C | -40 °C | Isolated Module | 36 V | 1 | 1/4 Brick, 8-DIP Module | 2250 VDC | 30 A |
Description
General part information
UCQ-1.2 Series
Isolated Module DC DC Converter 1 Output 1.2V 30A 36V - 75V Input
