142301

Active

Amphenol RF

CONN SMB 0HZ TO 4GHZ 50OHM SOLDER ST PANEL MOUNT RCP GOLD

Search across all available documentation for this part.

Active

Amphenol RF

CONN SMB 0HZ TO 4GHZ 50OHM SOLDER ST PANEL MOUNT RCP GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	142301

Body Finish	Gold
Body Material	Brass
Cable Group	Semi Rigid, RG-405
Cable Group [Max]	0.086 in
Cable Group [Min]	0.085 in
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Male Pin, Jack
Contact Termination	Solder, Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms

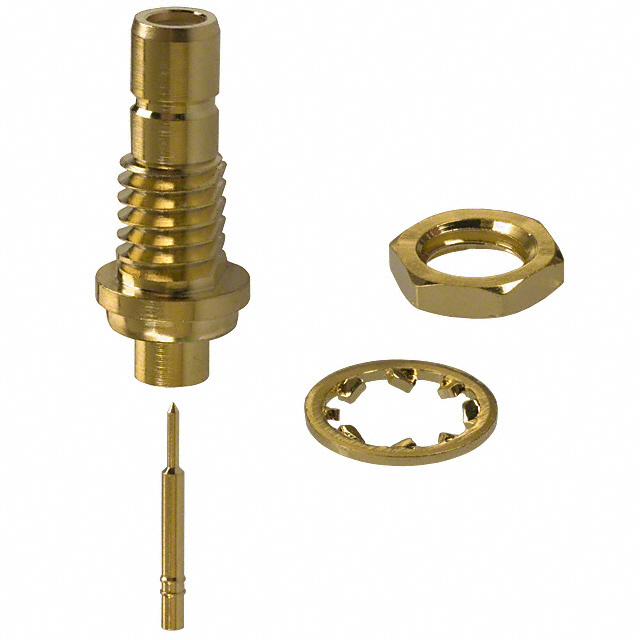

Includes	1 Lockwasher, 1 Connector, 1 Nut, 1 Contact
Insertion Loss	0.3 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

Part	Includes	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Connector Style	Contact Termination	Mating Cycles	Fastening Type	Voltage Rating	Insertion Loss	Shield Termination	Housing Color	Cable Group	Cable Group [Min]	Cable Group [Max]	Body Finish	Frequency - Max [Max]	Body Material	Connector Type	Mounting Feature	Impedance	Dielectric Material	Number of Ports	Contact Finish	Mounting Type	Contact Material	Adapter Type	Convert From (Adapter End)	Adapter Series	Conversion Type	Convert To (Adapter End)	Style
Amphenol RF 142301	1 Connector 1 Contact 1 Lockwasher 1 Nut	Gold	-65 ░C	165 °C	Brass	SMB	Crimp Solder	500	Snap-On	335 V	0.3 dB	Solder	Gold	RG-405 Semi Rigid	0.085 in	0.086 in	Gold	4 GHz	Brass	Jack Male Pin	Bulkhead - Front Side Nut	50 Ohms	Polytetrafluoroethylene (PTFE)	1
Amphenol RF 142334						SMB											Gold		Brass	Male Pin Plug		100 Ohms	Polytetrafluoroethylene (PTFE)		Gold	Cap Free Hanging	Beryllium Copper
Amphenol RF 142310		Gold	-65 ░C	165 °C	Beryllium Copper				Snap-On								Gold	4 GHz	Brass			50 Ohms	Polytetrafluoroethylene (PTFE)			Free Hanging (In-Line)		Plug to Jack	SMB Jack Male Pin	SMB to SMB	Same Series	Female Socket SMB Plug	Straight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 12.23

General part information

SMB Connector Jack, Male Pin 50 Ohms Panel Mount Crimp or Solder
