SF7282-6PG-3ES
ActiveConxall/Switchcraft

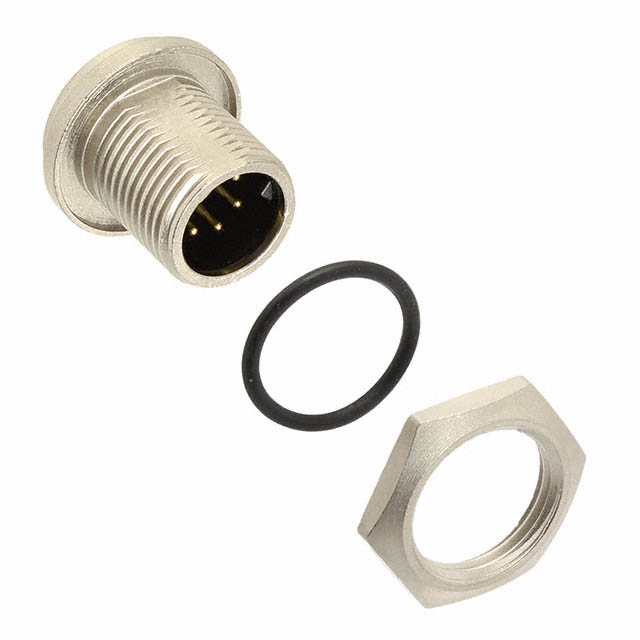

CONN RCPT MALE 6P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
SF7282-6PG-3ES
ActiveConxall/Switchcraft
CONN RCPT MALE 6P GOLD SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SF7282-6PG-3ES | SF7282 Series |
|---|---|---|
| Color | Silver | Silver |
| Connector Type | Receptacle, Male Pins | Receptacle, Female Sockets, Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Ingress Protection | IP66/IP68 | IP66/IP68 |
| Insert Material | Polyester Resin | Polyester Resin |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Number of Positions | 6 | 2 - 8 |
| Operating Temperature [Max] | 120 °C | 120 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Copper Alloy | Copper Alloy |
| Shielding | Shielded | Shielded |
SF7282 Series
CONN RCPT FMALE 8P GOLD SLDR CUP
| Part | Shell Finish | Contact Material | Insert Material | Connector Type | Primary Material | Orientation | Shielding | Color | Ingress Protection | Number of Positions | Shell Material | Mounting Feature | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft SF7282-8SG-3ES | Nickel | Copper Alloy | Polyester Resin | Receptacle, Female Sockets | Metal | Keyed | Shielded | Silver | IP66/IP68 | 8 | Copper Alloy | Bulkhead - Front Side Nut | Gold | -40 °C | 120 °C |
Conxall/Switchcraft SF7282-2PG-3ES | Nickel | Copper Alloy | Polyester Resin | Male Pins, Receptacle | Metal | Keyed | Shielded | Silver | IP66/IP68 | 2 | Copper Alloy | Bulkhead - Front Side Nut | Gold | -40 °C | 120 °C |
Conxall/Switchcraft SF7282-4PG-3ES | Nickel | Copper Alloy | Polyester Resin | Male Pins, Receptacle | Metal | Keyed | Shielded | Silver | IP66/IP68 | 4 | Copper Alloy | Bulkhead - Front Side Nut | Gold | -40 °C | 120 °C |
Conxall/Switchcraft SF7282-7SG-3ES | Nickel | Copper Alloy | Polyester Resin | Receptacle, Female Sockets | Metal | Keyed | Shielded | Silver | IP66/IP68 | 7 | Copper Alloy | Bulkhead - Front Side Nut | Gold | -40 °C | 120 °C |
Conxall/Switchcraft SF7282-3SG-3ES | Nickel | Copper Alloy | Polyester Resin | Receptacle, Female Sockets | Metal | Keyed | Shielded | Silver | IP66/IP68 | Copper Alloy | Bulkhead - Front Side Nut | Gold | -40 °C | 120 °C | |
Conxall/Switchcraft SF7282-5PG-3ES | Nickel | Copper Alloy | Polyester Resin | Male Pins, Receptacle | Metal | Keyed | Shielded | Silver | IP66/IP68 | Copper Alloy | Bulkhead - Front Side Nut | Gold | -40 °C | 120 °C | |
Conxall/Switchcraft SF7282-6PG-3ES | Nickel | Copper Alloy | Polyester Resin | Male Pins, Receptacle | Metal | Keyed | Shielded | Silver | IP66/IP68 | 6 | Copper Alloy | Bulkhead - Front Side Nut | Gold | -40 °C | 120 °C |
Conxall/Switchcraft SF7282-5SG-3ES | Nickel | Copper Alloy | Polyester Resin | Receptacle, Female Sockets | Metal | Keyed | Shielded | Silver | IP66/IP68 | Copper Alloy | Bulkhead - Front Side Nut | Gold | -40 °C | 120 °C | |
Conxall/Switchcraft SF7282-2SG-3ES | Nickel | Copper Alloy | Polyester Resin | Receptacle, Female Sockets | Metal | Keyed | Shielded | Silver | IP66/IP68 | 2 | Copper Alloy | Bulkhead - Front Side Nut | Gold | -40 °C | 120 °C |
Conxall/Switchcraft SF7282-3PG-3ES | Nickel | Copper Alloy | Polyester Resin | Male Pins, Receptacle | Metal | Keyed | Shielded | Silver | IP66/IP68 | Copper Alloy | Bulkhead - Front Side Nut | Gold | -40 °C | 120 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.48 | |
| 10 | $ 16.64 | |||
Description
General part information
SF7282 Series
6 Position Circular Connector Receptacle, Male Pins Solder Cup
