SF7282-3PG-3ES

Active

Conxall/Switchcraft

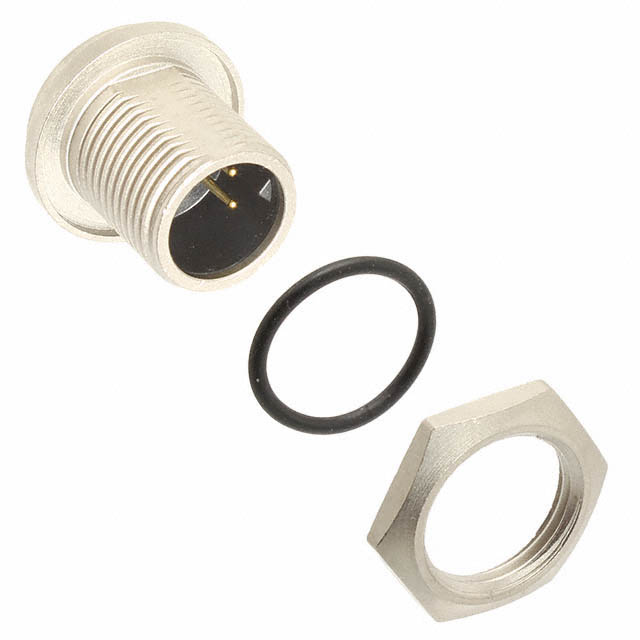

CONN RCPT MALE 3P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMicro,Mini,Multi,Maxi,Mega-Con-X Panel Cutouts Mini-Con-X (Shielded) Hole Patterns +1

SF7282-3PG-3ES

Active

Conxall/Switchcraft

CONN RCPT MALE 3P GOLD SLDR CUP

Deep-Dive with AI

DocumentsMicro,Mini,Multi,Maxi,Mega-Con-X Panel Cutouts Mini-Con-X (Shielded) Hole Patterns +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SF7282-3PG-3ES	SF7282 Series

Color	Silver	Silver
Connector Type	Receptacle, Male Pins	Receptacle, Female Sockets, Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Polyester Resin	Polyester Resin
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Number of Positions	-	2 - 8
Operating Temperature [Max]	120 °C	120 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Copper Alloy	Copper Alloy
Shielding	Shielded	Shielded

SF7282 Series

CONN RCPT FMALE 8P GOLD SLDR CUP

Part	Shell Finish	Contact Material	Insert Material	Connector Type	Primary Material	Orientation	Shielding	Color	Ingress Protection	Number of Positions	Shell Material	Mounting Feature	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]
Conxall/Switchcraft SF7282-8SG-3ES	Nickel	Copper Alloy	Polyester Resin	Receptacle, Female Sockets	Metal	Keyed	Shielded	Silver	IP66/IP68	8	Copper Alloy	Bulkhead - Front Side Nut	Gold	-40 °C	120 °C
Conxall/Switchcraft SF7282-2PG-3ES	Nickel	Copper Alloy	Polyester Resin	Male Pins, Receptacle	Metal	Keyed	Shielded	Silver	IP66/IP68	2	Copper Alloy	Bulkhead - Front Side Nut	Gold	-40 °C	120 °C
Conxall/Switchcraft SF7282-4PG-3ES	Nickel	Copper Alloy	Polyester Resin	Male Pins, Receptacle	Metal	Keyed	Shielded	Silver	IP66/IP68	4	Copper Alloy	Bulkhead - Front Side Nut	Gold	-40 °C	120 °C
Conxall/Switchcraft SF7282-7SG-3ES	Nickel	Copper Alloy	Polyester Resin	Receptacle, Female Sockets	Metal	Keyed	Shielded	Silver	IP66/IP68	7	Copper Alloy	Bulkhead - Front Side Nut	Gold	-40 °C	120 °C
Conxall/Switchcraft SF7282-3SG-3ES	Nickel	Copper Alloy	Polyester Resin	Receptacle, Female Sockets	Metal	Keyed	Shielded	Silver	IP66/IP68		Copper Alloy	Bulkhead - Front Side Nut	Gold	-40 °C	120 °C
Conxall/Switchcraft SF7282-5PG-3ES	Nickel	Copper Alloy	Polyester Resin	Male Pins, Receptacle	Metal	Keyed	Shielded	Silver	IP66/IP68		Copper Alloy	Bulkhead - Front Side Nut	Gold	-40 °C	120 °C
Conxall/Switchcraft SF7282-6PG-3ES	Nickel	Copper Alloy	Polyester Resin	Male Pins, Receptacle	Metal	Keyed	Shielded	Silver	IP66/IP68	6	Copper Alloy	Bulkhead - Front Side Nut	Gold	-40 °C	120 °C
Conxall/Switchcraft SF7282-5SG-3ES	Nickel	Copper Alloy	Polyester Resin	Receptacle, Female Sockets	Metal	Keyed	Shielded	Silver	IP66/IP68		Copper Alloy	Bulkhead - Front Side Nut	Gold	-40 °C	120 °C
Conxall/Switchcraft SF7282-2SG-3ES	Nickel	Copper Alloy	Polyester Resin	Receptacle, Female Sockets	Metal	Keyed	Shielded	Silver	IP66/IP68	2	Copper Alloy	Bulkhead - Front Side Nut	Gold	-40 °C	120 °C
Conxall/Switchcraft SF7282-3PG-3ES	Nickel	Copper Alloy	Polyester Resin	Male Pins, Receptacle	Metal	Keyed	Shielded	Silver	IP66/IP68		Copper Alloy	Bulkhead - Front Side Nut	Gold	-40 °C	120 °C
