2-794629-0

Obsolete

TE Connectivity AMP Connectors

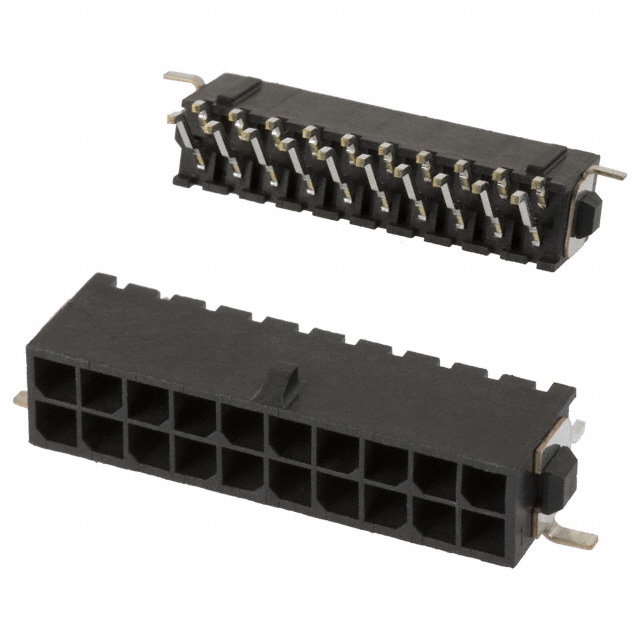

CONN HEADER SMD R/A 20POS 3MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2-794629-0

Obsolete

TE Connectivity AMP Connectors

CONN HEADER SMD R/A 20POS 3MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2-794629-0	794629 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold, Gold or Gold-Palladium
Contact Finish - Post	Tin-Lead	Tin-Lead, Tin
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Features	Solder Retention	Solder Retention
Insulation Color	Black	Black
Insulation Height	7.37 mm	7.37 mm
Insulation Height	0.29 in	0.29 in
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle
Number of Positions	20	4 - 24
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.118 in	0.118 in
Pitch - Mating	3 mm	3 mm
Row Spacing - Mating	3 mm	3 mm
Row Spacing - Mating	0.118 in	0.118 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	250 VDC	250 VDC

794629 Series

CONN HEADER SMD R/A 12POS 3MM

Part	Number of Positions Loaded	Contact Shape	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Style	Current Rating (Amps)	Material Flammability Rating	Mounting Type	Connector Type	Applications	Insulation Color	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Row Spacing - Mating	Row Spacing - Mating	Termination	Contact Type	Voltage Rating	Number of Positions	Insulation Material	Contact Finish - Mating	Insulation Height	Insulation Height	Fastening Type	Pitch - Mating	Pitch - Mating	Features	Number of Positions
TE Connectivity AMP Connectors 1-794629-2	All	Square	Brass	30 Áin	0.76 Ám	Tin-Lead	Board to Cable/Wire	Varies by Wire Gauge	UL94 V-0	Surface Mount, Right Angle	Header	General Purpose	Black	2	-40 °C	105 ░C	Shrouded - 4 Wall	2.54 µm	100 µin	3 mm	0.118 in	Solder	Male Pin	250 VDC	12	Nylon, Polyamide (PA)	Gold	7.37 mm	0.29 in	Locking Ramp	0.118 in	3 mm	Solder Retention
TE Connectivity AMP Connectors 794629-8	All	Square	Brass	30 Áin	0.76 Ám	Tin-Lead	Board to Cable/Wire	Varies by Wire Gauge	UL94 V-0	Surface Mount, Right Angle	Header	General Purpose	Black	2	-40 °C	105 ░C	Shrouded - 4 Wall	2.54 µm	100 µin	3 mm	0.118 in	Solder	Male Pin	250 VDC	8	Nylon, Polyamide (PA)	Gold	7.37 mm	0.29 in	Locking Ramp	0.118 in	3 mm	Solder Retention
TE Connectivity AMP Connectors 2-794629-4	All	Square	Brass	30 Áin	0.76 Ám	Tin-Lead	Board to Cable/Wire	Varies by Wire Gauge	UL94 V-0	Surface Mount, Right Angle	Header	General Purpose	Black	2	-40 °C	105 ░C	Shrouded - 4 Wall	2.54 µm	100 µin	3 mm	0.118 in	Solder	Male Pin	250 VDC	24	Nylon, Polyamide (PA)	Gold	7.37 mm	0.29 in	Locking Ramp	0.118 in	3 mm	Solder Retention
TE Connectivity AMP Connectors 5-794629-4	All	Square	Brass	30 Áin	0.76 Ám	Tin	Board to Cable/Wire	Varies by Wire Gauge	UL94 V-0	Surface Mount, Right Angle	Header	General Purpose	Black	2	-40 °C	105 ░C	Shrouded - 4 Wall	2.54 µm	100 µin	3 mm	0.118 in	Solder	Male Pin	250 VDC	24	Nylon, Polyamide (PA)	Gold	7.37 mm	0.29 in	Locking Ramp	0.118 in	3 mm	Solder Retention
TE Connectivity AMP Connectors 1-794629-0	All	Square	Brass	30 Áin	0.76 Ám	Tin-Lead	Board to Cable/Wire	Varies by Wire Gauge	UL94 V-0	Surface Mount, Right Angle	Header	General Purpose	Black	2	-40 °C	105 ░C	Shrouded - 4 Wall	2.54 µm	100 µin	3 mm	0.118 in	Solder	Male Pin	250 VDC	10	Nylon, Polyamide (PA)	Gold	7.37 mm	0.29 in	Locking Ramp	0.118 in	3 mm	Solder Retention
TE Connectivity AMP Connectors 3-794629-8	All	Square	Brass	30 Áin	0.76 Ám	Tin	Board to Cable/Wire	Varies by Wire Gauge	UL94 V-0	Surface Mount, Right Angle	Header	General Purpose	Black	2	-40 °C	105 ░C	Shrouded - 4 Wall	2.54 µm	100 µin	3 mm	0.118 in	Solder	Male Pin	250 VDC	8	Nylon, Polyamide (PA)	Gold	7.37 mm	0.29 in	Locking Ramp	0.118 in	3 mm	Solder Retention
TE Connectivity AMP Connectors 2-794629-0	All	Square	Brass	30 Áin	0.76 Ám	Tin-Lead	Board to Cable/Wire	Varies by Wire Gauge	UL94 V-0	Surface Mount, Right Angle	Header	General Purpose	Black	2	-40 °C	105 ░C	Shrouded - 4 Wall	2.54 µm	100 µin	3 mm	0.118 in	Solder	Male Pin	250 VDC	20	Nylon, Polyamide (PA)	Gold	7.37 mm	0.29 in	Locking Ramp	0.118 in	3 mm	Solder Retention
TE Connectivity AMP Connectors 4-794629-6	All	Square	Brass	30 Áin	0.76 Ám	Tin	Board to Cable/Wire	Varies by Wire Gauge	UL94 V-0	Surface Mount, Right Angle	Header	General Purpose	Black	2	-40 °C	105 ░C	Shrouded - 4 Wall	2.54 µm	100 µin	3 mm	0.118 in	Solder	Male Pin	250 VDC		Nylon, Polyamide (PA)	Gold or Gold-Palladium	7.37 mm	0.29 in	Locking Ramp	0.118 in	3 mm	Solder Retention	16
TE Connectivity AMP Connectors 5-794629-2	All	Square	Brass	30 Áin	0.76 Ám	Tin	Board to Cable/Wire	Varies by Wire Gauge	UL94 V-0	Surface Mount, Right Angle	Header	General Purpose	Black	2	-40 °C	105 ░C	Shrouded - 4 Wall	2.54 µm	100 µin	3 mm	0.118 in	Solder	Male Pin	250 VDC	22 positions	Nylon, Polyamide (PA)	Gold	7.37 mm	0.29 in	Locking Ramp	0.118 in	3 mm	Solder Retention
TE Connectivity AMP Connectors 3-794629-4	All	Square	Brass	30 Áin	0.76 Ám	Tin	Board to Cable/Wire	Varies by Wire Gauge	UL94 V-0	Surface Mount, Right Angle	Header	General Purpose	Black	2	-40 °C	105 ░C	Shrouded - 4 Wall	2.54 µm	100 µin	3 mm	0.118 in	Solder	Male Pin	250 VDC	4	Nylon, Polyamide (PA)	Gold	7.37 mm	0.29 in	Locking Ramp	0.118 in	3 mm	Solder Retention

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

794629 Series

Connector Header Surface Mount, Right Angle 20 position 0.118" (3.00mm)
