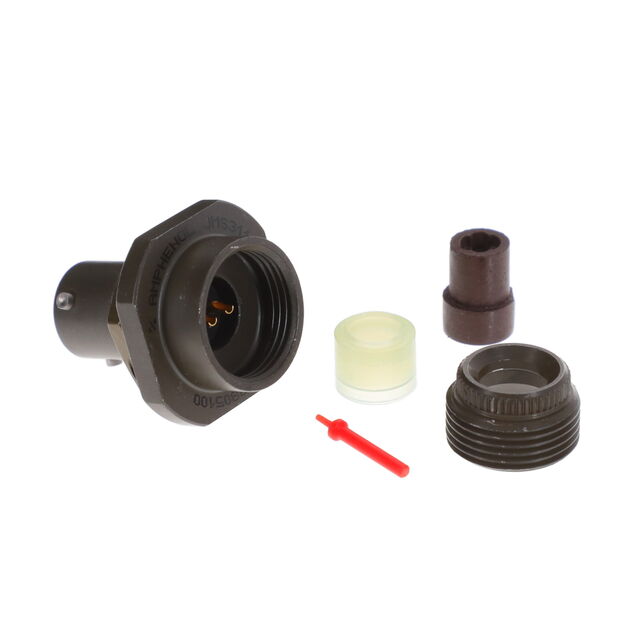

MS3114E8-2P
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3114E8-2P
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3114E8-2P | MS3114E8 Series |
|---|---|---|
| Applications | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military |
| Backshell Material, Plating | - | Aluminum, Olive Drab Chromate over Cadmium |
| Color | Olive Drab | Olive Drab |
| Connector Type | Receptacle, Male Pins | Receptacle, Female Sockets, Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 7.5 A | 7.5 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | - | Backshell |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Number of Positions | 2 | 2 - 4 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | X, N, W |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy | Aluminum, Aluminum Alloy |
| Shell Size - Insert | 8-2 | 8-3, 8-2, 8-4 |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 600 VAC | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 88.37 | |
| 10 | $ 68.70 | |||
| 25 | $ 62.48 | |||
| 50 | $ 58.28 | |||
| 100 | $ 54.48 | |||
MS3114E8 Series
CONN RCPT FMALE 3P GOLD SLDR CUP
| Part | Ingress Protection | Contact Finish - Mating | Shielding | Grade | Backshell Material, Plating | Shell Size - Insert | Primary Material | Contact Material | Features | Orientation | Fastening Type | Qualification | Color | Connector Type | Mounting Feature | Shell Finish | Insert Material | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Shell Material | Number of Positions | Current Rating (Amps) | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3114E8-3SX | Environment Resistant | Gold | Unshielded | Military | Aluminum, Olive Drab Chromate over Cadmium | 8-3 | Metal | Copper Alloy | Backshell | X | Bayonet Lock | MIL-DTL-26482 Series I | Olive Drab | Receptacle, Female Sockets | Bulkhead - Front Side Nut | Olive Drab Chromate over Cadmium | Neoprene | -55 °C | 125 °C | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Aluminum | |||
Amphenol Industrial Operations MS3114E8-2P | Environment Resistant | Gold | Unshielded | Military | 8-2 | Metal | Copper Alloy | N | Bayonet Lock | MIL-DTL-26482 Series I | Olive Drab | Male Pins, Receptacle | Bulkhead - Front Side Nut | Olive Drab Chromate over Cadmium | Neoprene | -55 °C | 125 °C | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Aluminum Alloy | 2 | 7.5 A | 600 VAC | ||
Amphenol Industrial Operations MS3114E8-4S | Environment Resistant | Gold | Unshielded | Military | Aluminum, Olive Drab Chromate over Cadmium | 8-4 | Metal | Copper Alloy | Backshell | N | Bayonet Lock | MIL-DTL-26482 Series I | Olive Drab | Receptacle, Female Sockets | Bulkhead - Front Side Nut | Olive Drab Chromate over Cadmium | Neoprene | -55 °C | 125 °C | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Aluminum | 4 | ||
Amphenol Industrial Operations MS3114E8-4SW | Environment Resistant | Gold | Unshielded | Military | Aluminum, Olive Drab Chromate over Cadmium | 8-4 | Metal | Copper Alloy | Backshell | W | Bayonet Lock | MIL-DTL-26482 Series I | Olive Drab | Receptacle, Female Sockets | Bulkhead - Front Side Nut | Olive Drab Chromate over Cadmium | Neoprene | -55 °C | 125 °C | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Aluminum | 4 |
Description
General part information
MS3114E8 Series
2 Position Circular Connector Receptacle, Male Pins Solder Cup
