158214-0220-3625/14-S-3

Active

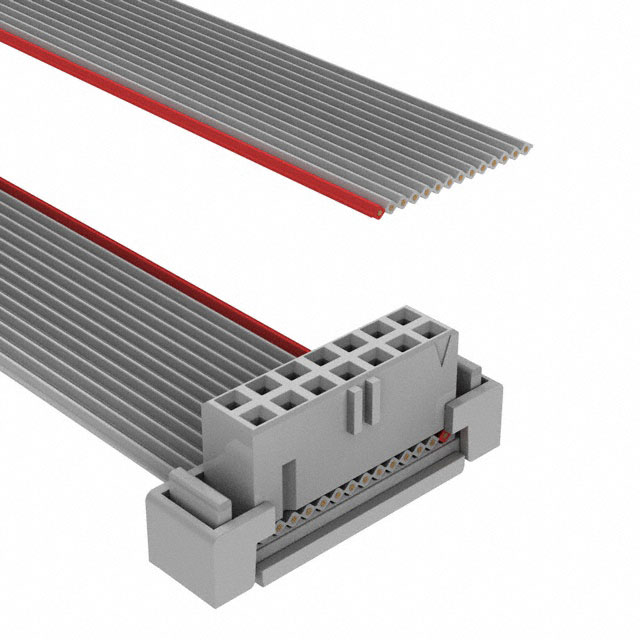

SINGLE ENDED CABLE ASSEMBLY 14 P

Search across all available documentation for this part.

Active

SINGLE ENDED CABLE ASSEMBLY 14 P

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

14 Position Cable Assembly Rectangular Socket to Cable 0.250' (76.20mm, 3.00")

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	158214-0220-3625/14-S-3	158214 Series

Cable Termination	IDC	IDC
Color	-	Gray
Connector Type	Socket to Cable	Socket to Cable, Socket to Socket, Socket
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Contact Type	-	Female Socket
Fastening Type	-	Friction Lock
Features	-	Feed Through
Length	3 "	3 - 6 "
Length	76.2 mm	76.2 - 152.4 mm
Length	0.25 ft	0.25 ft
Length	-	0.5 '
Mounting Type	-	Free Hanging (In-Line)
Number of Positions	14	14
Number of Rows	2	2
Pitch	-	0.079 in
Pitch	-	2 mm
Pitch - Cable	1 mm	1 mm
Pitch - Cable [custom]	0.039 "	0.039 "
Pitch - Connector	2 mm	2 mm
Pitch - Connector	0.079 in	0.079 in
Row Spacing	-	2 mm
Row Spacing	-	0.079 in
Shielding	Unshielded	Unshielded
Wire Gauge	-	28 AWG
Wire Type	-	Ribbon Cable

SINGLE ENDED CABLE ASSEMBLY 14 P

Part	Cable Termination	Number of Positions	Shielding	Length	Length	Length	Pitch - Connector	Pitch - Connector	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Connector Type	Pitch - Cable	Pitch - Cable [custom]	Contact Finish	Fastening Type	Row Spacing	Row Spacing	Wire Gauge	Contact Type	Mounting Type	Features	Color	Wire Type	Pitch [x]	Pitch [x]	Length
3M 158214-0220-HF625/14-S-6	IDC	14	Unshielded	152.4 mm	6 "	0.5 '	2 mm	0.079 in	0.76 Ám	30 Áin	2	Socket to Cable	1 mm	0.039 "	Gold
3M 158214-0220-HF625/14-D-6	IDC	14	Unshielded	152.4 mm	6 "	0.5 '	2 mm	0.079 in	0.76 Ám	30 Áin	2	Socket to Socket	1 mm	0.039 "	Gold
3M 158214-0220	IDC	14							0.76 Ám	30 Áin	2	Socket			Gold	Friction Lock	2 mm	0.079 in	28 AWG	Female Socket	Free Hanging (In-Line)	Feed Through	Gray	Ribbon Cable	0.079 in	2 mm
3M 158214-0120	IDC	14							0.76 Ám	30 Áin	2	Socket			Gold		2 mm	0.079 in	28 AWG	Female Socket	Free Hanging (In-Line)	Feed Through	Gray	Ribbon Cable	0.079 in	2 mm
3M 158214-0220-HF625/14-S-3	IDC	14	Unshielded	76.2 mm	3 "		2 mm	0.079 in	0.76 Ám	30 Áin	2	Socket to Cable	1 mm	0.039 "	Gold												0.25 ft
3M 158214-0120-HF625/14-D-6	IDC	14	Unshielded	152.4 mm	6 "	0.5 '	2 mm	0.079 in	0.76 Ám	30 Áin	2	Socket to Socket	1 mm	0.039 "	Gold
3M 158214-0220-HF625/14-D-3	IDC	14	Unshielded	76.2 mm	3 "		2 mm	0.079 in	0.76 Ám	30 Áin	2	Socket to Socket	1 mm	0.039 "	Gold												0.25 ft
3M 158214-0220-3625/14-S-3	IDC	14	Unshielded	76.2 mm	3 "		2 mm	0.079 in	0.76 Ám	30 Áin	2	Socket to Cable	1 mm	0.039 "	Gold												0.25 ft
