EKZE101ELL681MMP1S

Active

Chemi-Con

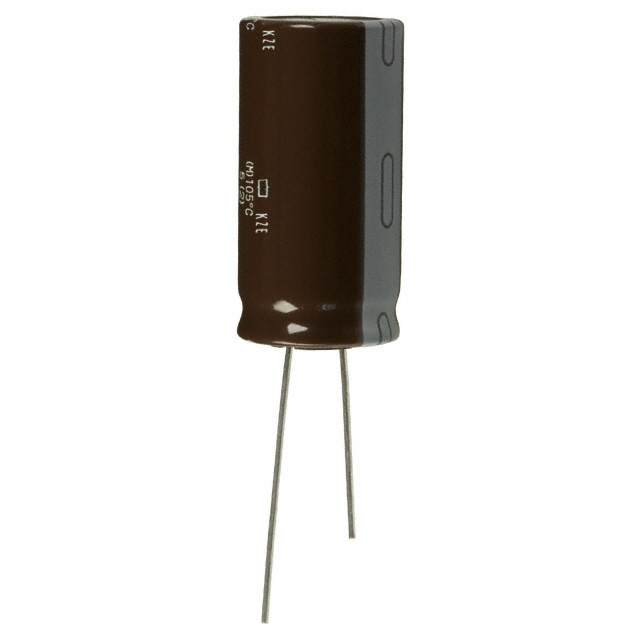

CAP ALUM 680UF 20% 100V RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EKZE101ELL681MMP1S

Active

Chemi-Con

CAP ALUM 680UF 20% 100V RADIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.81
		10	$ 2.16
		50	$ 1.98
		250	$ 1.49
		500	$ 1.32
		1000	$ 1.16
		2500	$ 1.12
		5000	$ 1.07

Description

General part information

EKZE101E Series

680 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EKZE101ELL681MMP1S	EKZE101E Series

Applications	General Purpose	General Purpose
Capacitance	680 µF	6.8 - 820 µF
Height - Seated (Max)	-	0.492 - 0.846 in
Height - Seated (Max)	-	1.634 - 21.5 mm
Height - Seated (Max)	-	14 mm
Height - Seated (Max)	-	41.5 mm
Height - Seated (Max) [Max] [z]	37 mm	13 - 37 mm
Height - Seated (Max) [Max] [z]	1.457 in	0.512 - 1.457 in
Impedance	27 mOhms	1.4 - 360 mOhms
Lead Spacing	7.5 mm	2 - 7.5 mm
Lead Spacing	0.295 in	0.079 - 0.295 in
Lifetime @ Temp.	5000 Hrs	2000 - 5000 Hrs
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Radial, Can	Radial, Can
Polarization	Polar	Polar
Ripple Current @ High Frequency	2.2 A	1.1 - 900 A
Ripple Current @ Low Frequency	1.32 A	1 - 925 mA
Size / Dimension [diameter]	0.709 "	0.197 - 0.709 in
Size / Dimension [diameter]	18 mm	5 - 18 mm
Tolerance	20 %	20 %
Voltage - Rated	100 V	100 V

EKZE101E Series

CAP ALUM 220UF 20% 100V RADIAL

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Applications	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Ripple Current @ High Frequency	Mounting Type	Capacitance	Lifetime @ Temp.	Ripple Current @ Low Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Voltage - Rated	Polarization	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)	Height - Seated (Max) [Max]
Chemi-Con EKZE101ELL221MK25S	1.043 in	26.5 mm	General Purpose	47 mOhms	-40 °C	105 ░C	20 %	1.25 A	Through Hole	220 µF	5000 Hrs	625 mA	0.492 in	12.5 mm	Radial, Can	100 V	Polar	5 mm	0.197 in
Chemi-Con EKZE101ELL6R8ME11D			General Purpose	1.4 Ohms	-40 °C	105 ░C	20 %	125 mA	Through Hole	6.8 ÁF	2000 Hrs	50 mA	0.197 "	5 mm	Radial, Can	100 V	Polar	2 mm	0.079 in	0.492 in	12.5 mm
Chemi-Con EKZE101EC5561MLP1S	1.457 in	37 mm	General Purpose	29 mOhms	-40 °C	105 ░C	20 %	2 A	Through Hole	560 µF	5000 Hrs	1 A	0.63 in	16 mm	Radial, Can	100 V	Polar	7.5 mm	0.295 in
Chemi-Con EKZE101ELL121MJ25S	1.043 in	26.5 mm	General Purpose	69 mOhms	-40 °C	105 ░C	20 %	900 mA	Through Hole	120 µF	4000 Hrs	360 mA	0.394 in	10 mm	Radial, Can	100 V	Polar	5 mm	0.197 in
Chemi-Con EKZE101ELL221ML20S			General Purpose	48 mOhms	-40 °C	105 ░C	20 %	1.35 A	Through Hole	220 µF	5000 Hrs	675 mA	0.63 in	16 mm	Radial, Can	100 V	Polar	7.5 mm	0.295 in	0.846 in	21.5 mm
Chemi-Con EKZE101EC3471MLN3S	1.299 in	33 mm	General Purpose	32 mOhms	-40 °C	105 ░C	20 %	1.85 A	Through Hole	470 µF	5000 Hrs	925 mA	0.63 in	16 mm	Radial, Can	100 V	Polar	7.5 mm	0.295 in
Chemi-Con EKZE101ETD470MJC5S			General Purpose	170 mOhms	-40 °C	105 ░C	20 %	480 mA	Through Hole	47 µF	4000 Hrs	192 mA	0.394 in	10 mm	Radial, Can	100 V	Polar	5 mm	0.197 in	0.551 "		14 mm
Chemi-Con EKZE101ELL681MMP1S	1.457 in	37 mm	General Purpose	27 mOhms	-40 °C	105 ░C	20 %	2.2 A	Through Hole	680 µF	5000 Hrs	1.32 A	0.709 "	18 mm	Radial, Can	100 V	Polar	7.5 mm	0.295 in
Chemi-Con EKZE101ELL821MM40S			General Purpose	26 mOhms	-40 °C	105 ░C	20 %	2.7 A	Through Hole	820 µF	5000 Hrs	1.62 A	0.709 "	18 mm	Radial, Can	100 V	Polar	7.5 mm	0.295 in		1.634 "		41.5 mm
Chemi-Con EKZE101EC5151MK20S			General Purpose	62 mOhms	-40 °C	105 ░C	20 %	1.1 A	Through Hole	150 µF	5000 Hrs	440 mA	0.492 in	12.5 mm	Radial, Can	100 V	Polar	5 mm	0.197 in	0.846 in	21.5 mm
