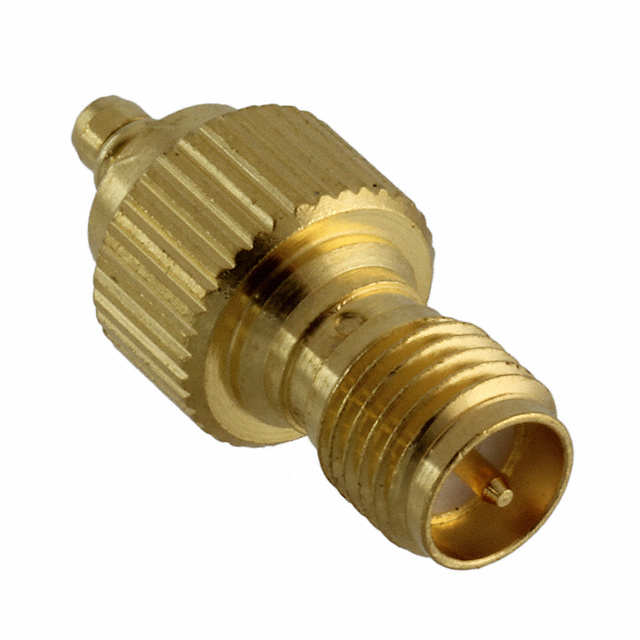

242141RP

Active

Amphenol RF

CONN ADAPT MMCX PLUG-RP-SMA JCK

Search across all available documentation for this part.

Active

Amphenol RF

CONN ADAPT MMCX PLUG-RP-SMA JCK

Technical Specifications

Parameters and characteristics for this part

Specification	242141RP

Adapter Series	RP-SMA, MMCX
Adapter Type	Plug to Jack
Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Between Series
Convert From (Adapter End)	MMCX Plug, Male Pin
Convert To (Adapter End)	RP-SMA Jack, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Convert To (Adapter End)	Center Contact Material	Mounting Type	Frequency - Max [Max]	Convert From (Adapter End)	Body Finish	Adapter Type	Center Gender	Style	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Conversion Type	Fastening Type	Adapter Series	Body Material	Center Contact Plating	Dielectric Material
Amphenol RF 242141RP	Male Pin RP-SMA Jack	Brass	Free Hanging (In-Line)	6000 MHz	MMCX Plug Male Pin	Gold	Plug to Jack	Male to Male	Straight	50 Ohms	-65 ░C	165 °C	Between Series	Snap-On Threaded	MMCX RP-SMA	Brass	Gold	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector MMCX Plug, Male Pin To RP-SMA Jack, Male Pin 50 Ohms
